Description
Brand - CPM
Part Number - 2772 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

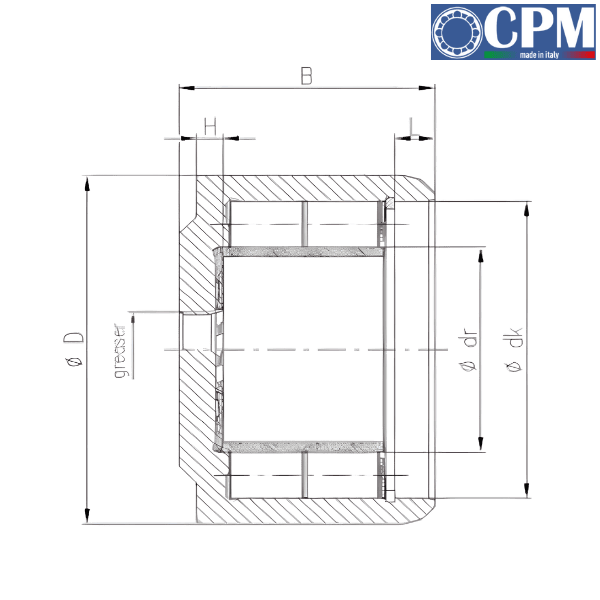

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 215 mm
Inner Diameter (dr) - 140.26 mm
Width (B) - 136.5 mm
Dimension (H) - 12 mm
Dimension (dk) - 192.26 mm
Dimension (L) - 13.8 mm
Greaser - M36x1.5
Basic Dynamic Radial Load Rating (Cr) - 1090 kN
Basic Static Radial Load Rating (Cor) - 1810 kN

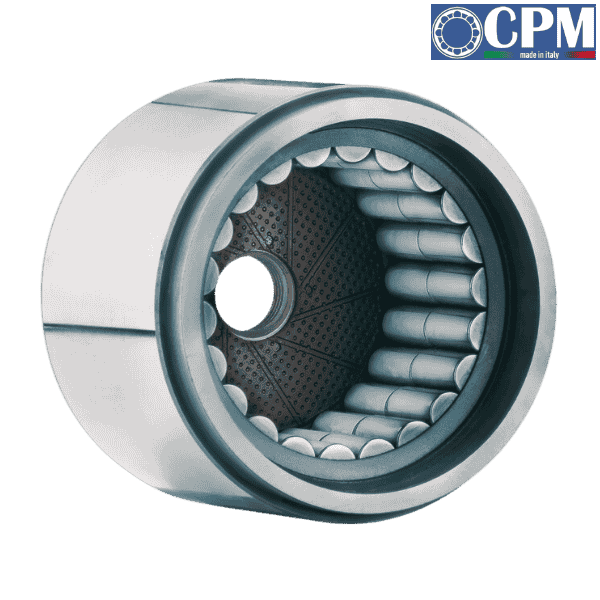

♦♦ Images are for representation purposes only
