Description
Brand - CPM
Part Number - 2760 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

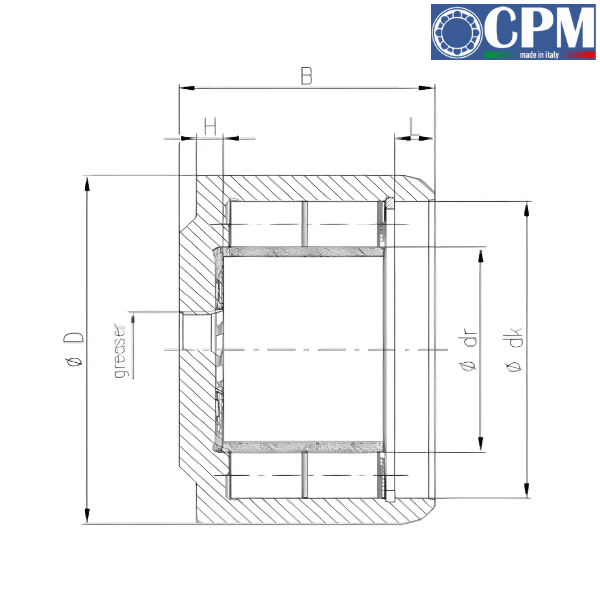

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Inner Diameter (dr) - 49.63 mm
Width (B) - 52 mm
Dimension (H) - 8 mm
Dimension (dk) - 63 mm
Dimension (L) - 11 mm
Greaser - M10x1
Basic Dynamic Radial Load Rating (Cr) - 113 kN
Basic Static Radial Load Rating (Cor) - 194 kN
♦♦ Images are for representation purposes only
