2730-2782 CPM

Brand - CPM
Part Number - 2730-2782 CPM

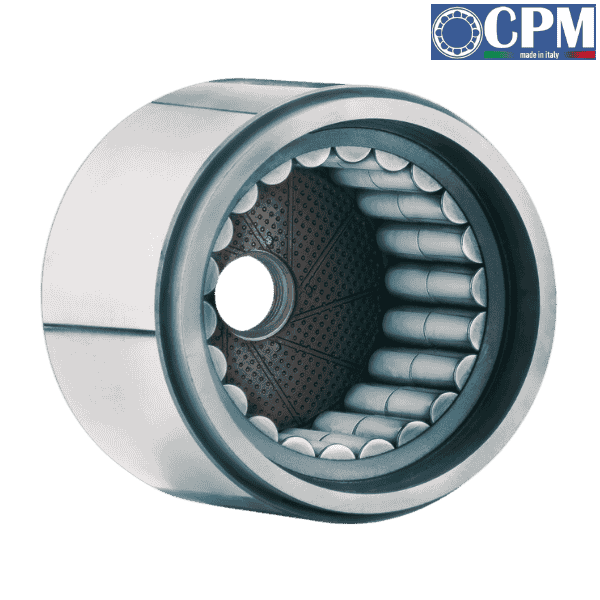

Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

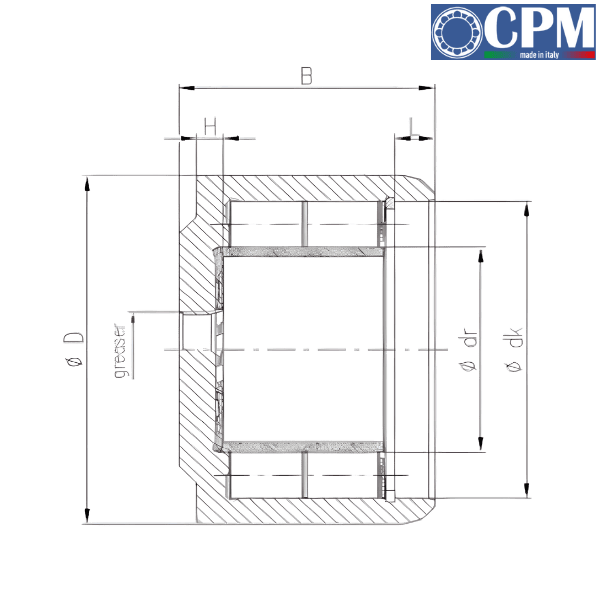

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 185 mm
Inner Diameter (dr) - 125.75 mm
Width (B) - 145.35 mm
Dimension (H) - 11.15 mm
Dimension (dk) - 147.6 mm, 152.6 mm
Greaser - M42x1.5
Basic Dynamic Radial Load Rating (Cr) - 675 kN
Basic Static Radial Load Rating (Cor) - 1278 kN

♦♦ Images are for representation purposes only
