Description
Brand - CPM
Part Number - 2716 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

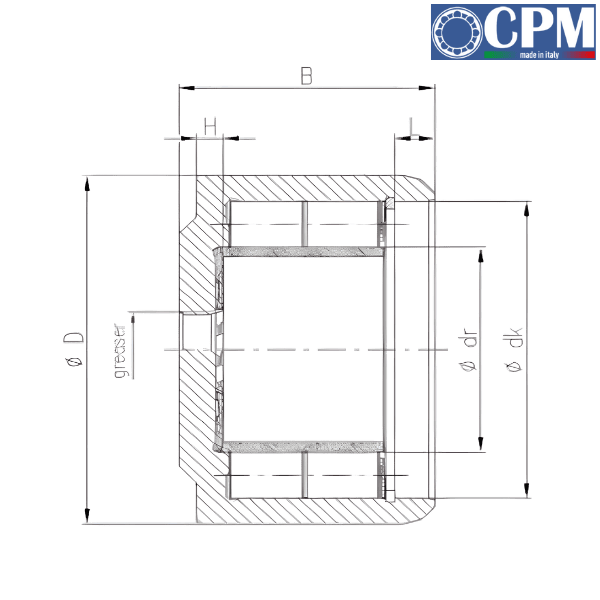

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 65 mm
Inner Diameter (dr) - 47.7 mm
Width (B) - 42 mm
Dimension (H) - 6.5 mm
Dimension (dk) - 58.8 mm
Dimension (L) - 3.1 mm
Greaser - 1/8" GAS
Basic Dynamic Radial Load Rating (Cr) - 96 kN
Basic Static Radial Load Rating (Cor) - 173 kN
♦♦ Images are for representation purposes only
