Description

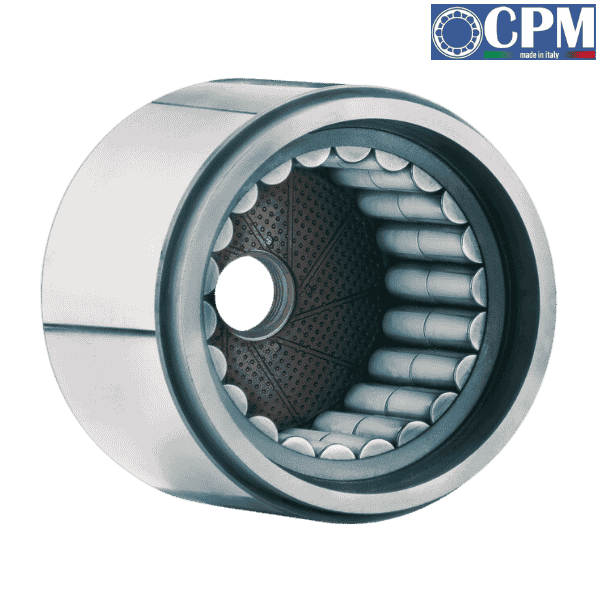

Brand - CPM
Part Number - 2711 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

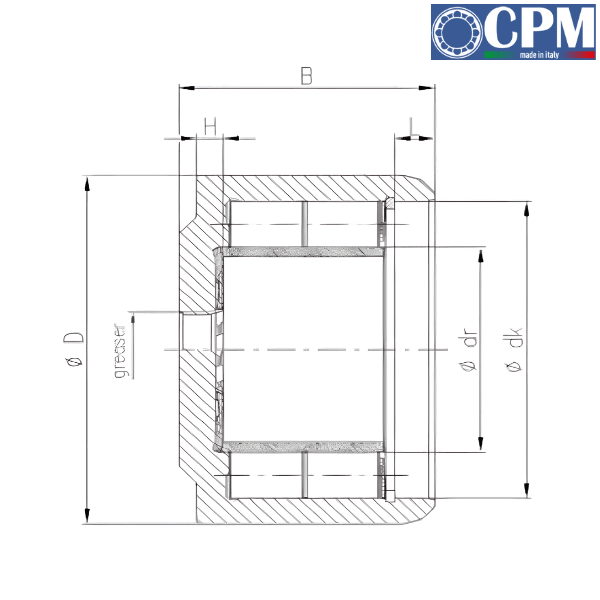

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 205 mm
Inner Diameter (dr) - 143 mm
Width (B) - 164.65 mm
Dimension (H) - 11.5 mm
Dimension (dk) - 166.5 mm, 171.5 mm
Greaser - M48x1.5
Basic Dynamic Radial Load Rating (Cr) - 815 kN
Basic Static Radial Load Rating (Cor) - 1690 kN
♦♦ Images are for representation purposes only
