Description
Brand - TIMKEN
Item Number - 26885/26820 (Y1S-26820) TIMKEN
Also Known As - 26885 - 26820 (Y1S-26820)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 41.275
Bore Diameter (d) inch - 1.625
Outer Diameter (D) mm - 80.167
Outer Diameter (D) inch - 3.1562
Width (T) mm - 50.8
Width (T) inch - 2
Width (B) mm - 50.8
Width (B) inch - 2
Dynamic Radial Rating (C1) N - 159000
Dynamic Radial Rating (C1) lbf - 35700
Factor (e) - 0.32
Factor (Y1) - 2.12
Factor (Y2) - 3.15
Dynamic Radial Rating (90 million revolutions) (C90) N - 23600
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 5310
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 12900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2900
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 41100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 9240
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.83
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 47
Backing Shoulder Diameter (db) inch - 1.85
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 69
Cup Frontface Backing Diameter (Da) inch - 2.72
Weight (kg) - 1.15
Weight (lbs) - 2.57
Outer Spacer - Y1S-26820
Inner Part Number - 26885
Outer Part Number - 26820
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

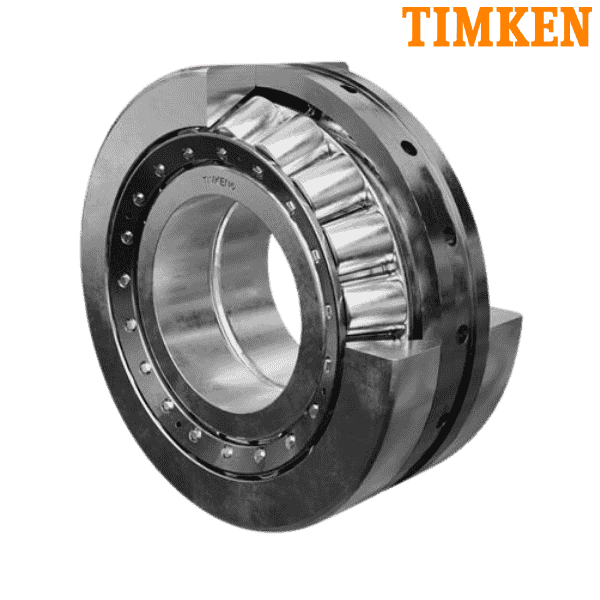

** Images are for representation purposes only
