Description
Brand - CPM
Part Number - 2688 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged

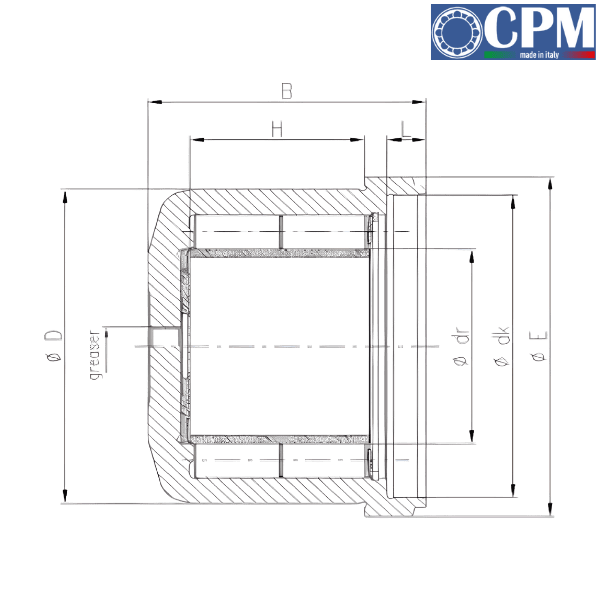

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 83 mm
Inner Diameter (dr) - 54.35 mm
Width (B) - 70.3 mm
Dimension (H) - 44.5 mm
Dimension (dk) - 80 mm
Dimension (L) - 10.5 mm
Dimension (E) - 90 mm
Greaser - M10x1
Basic Dynamic Radial Load Rating (Cr) - 190 kN
Basic Static Radial Load Rating (Cor) - 314 kN

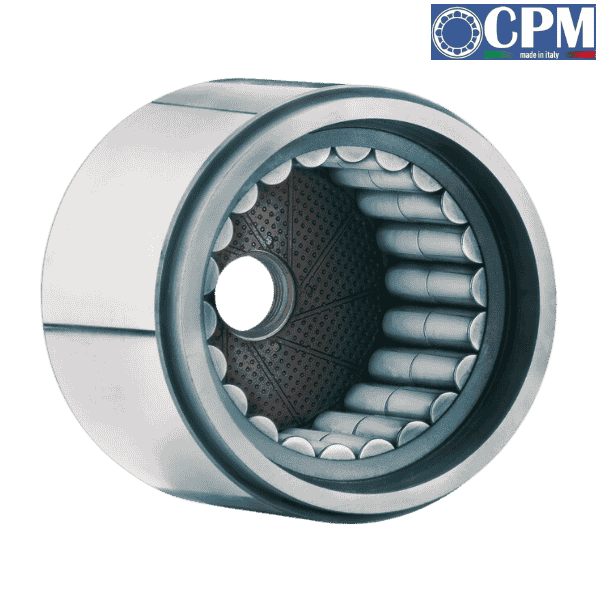

♦♦ Images are for representation purposes only
