2644 CPM

Brand - CPM
Part Number - 2644 CPM
Category - Geared Slewing Bearing

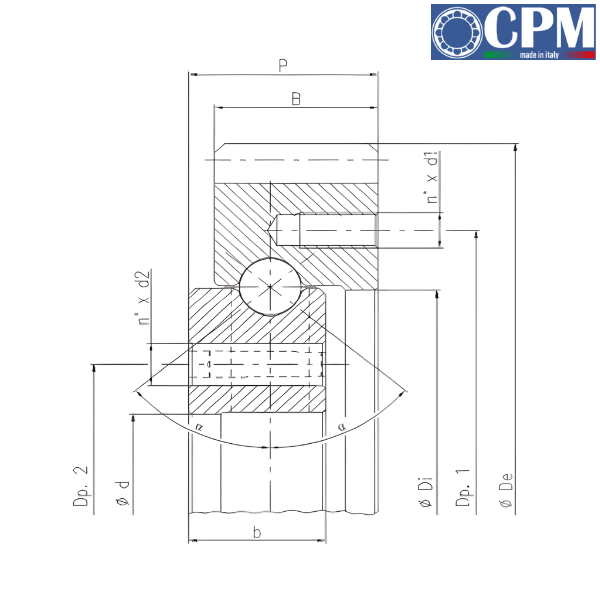

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 417 mm
Outer Diameter (De) - 598 mm
Dimension (Di) - 500 mm
Width (B) - 50 mm
Dimension (b) - 42 mm
Dimension (P) - 58 mm
Dimension (Dp.1) - 540 mm
Dimension (Dp.2) - 450 mm
Dimension (n° × d1) - 18 × M12
Dimension (n° × d2) - 18 × 14
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 266 kN
Basic Static Load Rating (Coa) - 1874 kN

♦♦ Images are for representation purposes only
