Description
Brand - CPM
Part Number - 2637 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

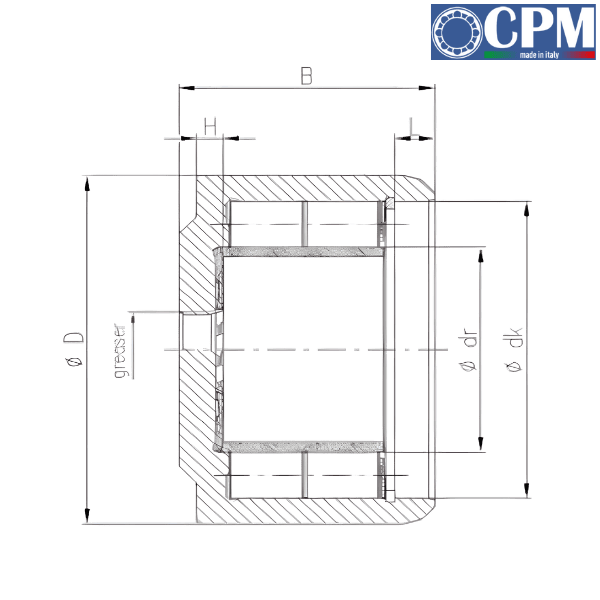

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 145 mm
Inner Diameter (dr) - 99.05 mm
Width (B) - 96 mm
Dimension (H) - 14 mm
Dimension (dk) - 127.05 mm
Dimension (L) - 12.15 mm
Greaser - M36x1.5
Basic Dynamic Radial Load Rating (Cr) - 447 kN
Basic Static Radial Load Rating (Cor) - 830 kN

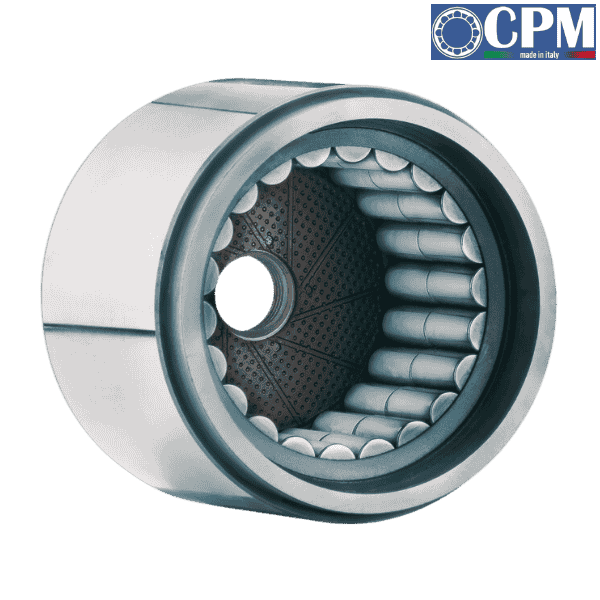

♦♦ Images are for representation purposes only
