Description
Brand - CPM
Part Number - 2635-2740 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - NF
Type NF - Not Flanged

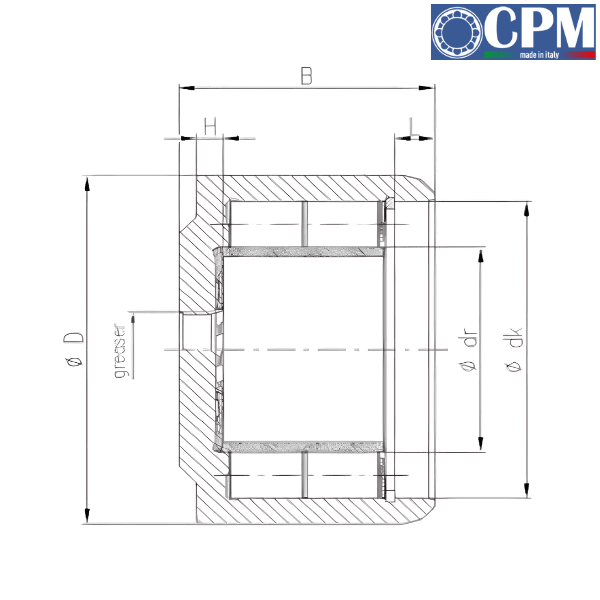

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 83 mm
Inner Diameter (dr) - 51.5 mm
Width (B) - 61.5 mm
Dimension (H) - 9.5 mm
Dimension (dk) - 67.5 mm
Dimension (L) - 10.25 mm
Greaser - M20x1.5
Basic Dynamic Radial Load Rating (Cr) - 154 kN
Basic Static Radial Load Rating (Cor) - 255 kN

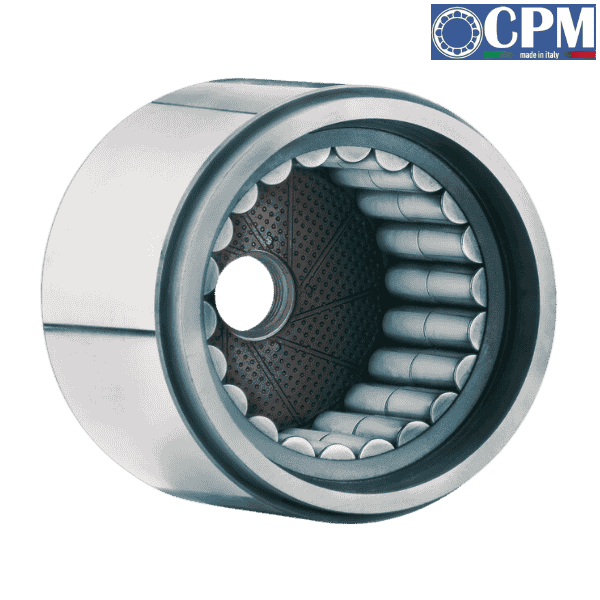

♦♦ Images are for representation purposes only
