2611 CPM

Brand - CPM
Part Number - 2611 CPM
Category - Geared Slewing Bearing

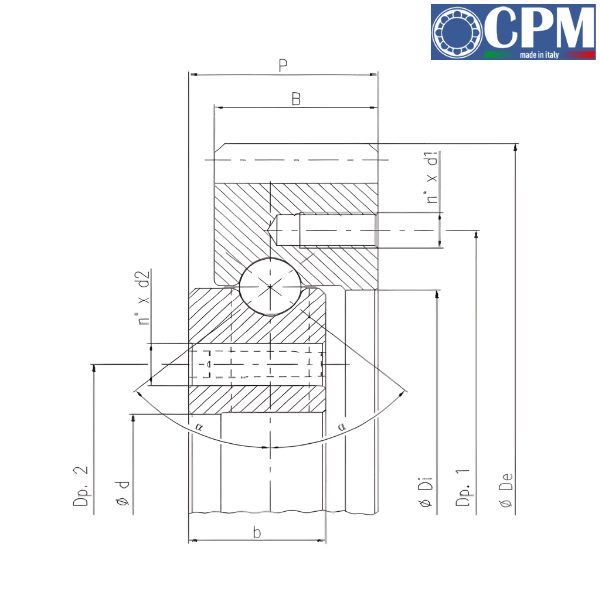

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 246 mm
Outer Diameter (De) - 358.306 mm
Dimension (Di) - 295 mm
Width (B) - 35 mm
Dimension (b) - 29 mm
Dimension (P) - 35 mm
Dimension (Dp.1) - 324 mm
Dimension (Dp.2) - 262 mm
Dimension (n° × d1) - 10 × M10
Dimension (n° × d2) - 10 × 11
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 136 kN
Basic Static Load Rating (Coa) - 760 kN

♦♦ Images are for representation purposes only
