2595 CPM

Brand - CPM
Part Number - 2595 CPM
Category - Slewing Bearing

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 140 mm
Outer Diameter (D) - 240 mm
Width (B) - 22 mm
Dimension (b) - 22 mm
Dimension (P) - 22 mm
Dimension (Dp. 1) - 220 mm
Dimension (Dp. 2) - 151 mm
Dimension (n° × d1) - 6xM10, 3xM8
Dimension (n° × d2) - 9x6.6
Angle (α) - 25°
Basic Dynamic Load Rating (Cr) - 120 kN
Basic Static Load Rating (Cor) - 156 kN

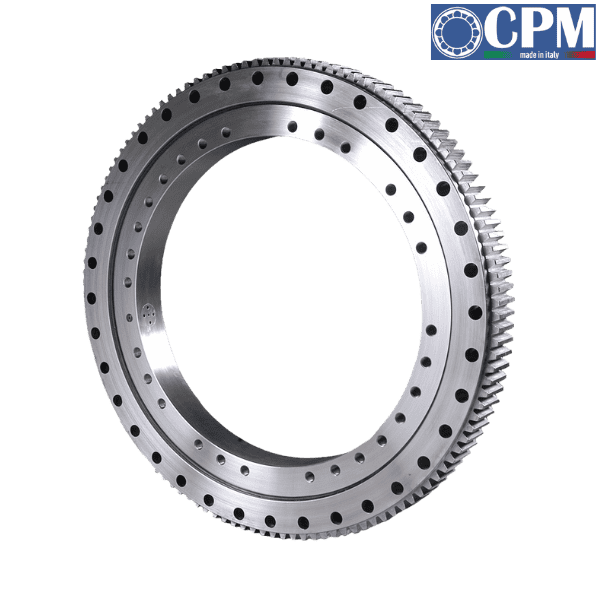

♦♦ Images are for representation purposes only
