2589 CPM

Brand - CPM
Part Number - 2589 CPM
Category - Geared Slewing Bearing

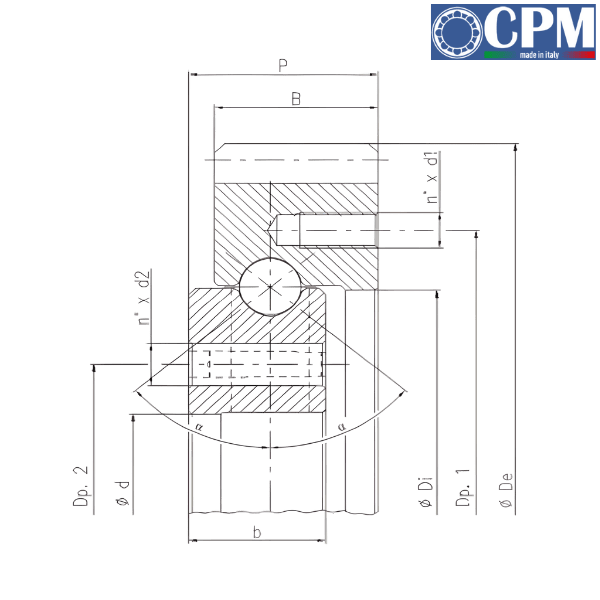

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 95 mm
Outer Diameter (De) - 189.056 mm
Dimension (Di) - 160 mm
Width (B) - 19 mm
Dimension (b) - 15 mm
Dimension (P) - 19 mm
Dimension (Dp.1) - 150 mm
Dimension (Dp.2) - 110 mm
Dimension (n° × d1) - 6 × M5
Dimension (n° × d2) - 6 × 6.5
Angle (α) - 30°
Basic Dynamic Load Rating (Cr) - 44.9 kN
Basic Static Load Rating (Cor) - 80.1 kN

♦♦ Images are for representation purposes only
