Description
Brand - CPM
Part Number - 2584 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged

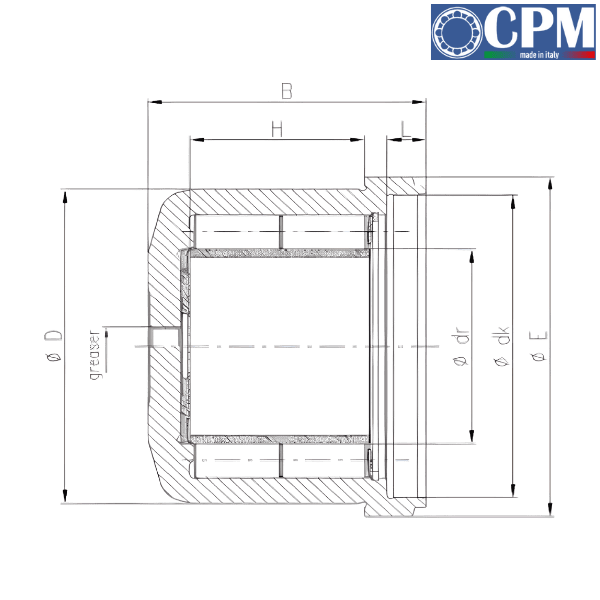

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 110 mm
Inner Diameter (dr) - 68.7 mm
Width (B) - 90 mm
Dimension (H) - 55.5 mm
Dimension (dk) - 100 mm
Dimension (L) - 9.5 mm
Dimension (E) - 122 mm
Basic Dynamic Radial Load Rating (Cr) - 330 kN
Basic Static Radial Load Rating (Cor) - 530 kN

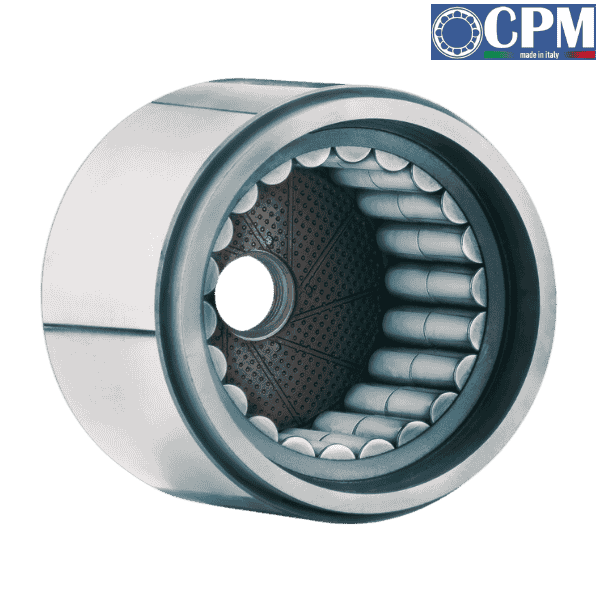

♦♦ Images are for representation purposes only
Part Number - 2584 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged
Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 110 mm
Inner Diameter (dr) - 68.7 mm
Width (B) - 90 mm
Dimension (H) - 55.5 mm
Dimension (dk) - 100 mm
Dimension (L) - 9.5 mm
Dimension (E) - 122 mm
Basic Dynamic Radial Load Rating (Cr) - 330 kN
Basic Static Radial Load Rating (Cor) - 530 kN
♦♦ Images are for representation purposes only
