Description
Brand - CPM
Part Number - 2570 CPM
Category - Geared Slewing Bearing

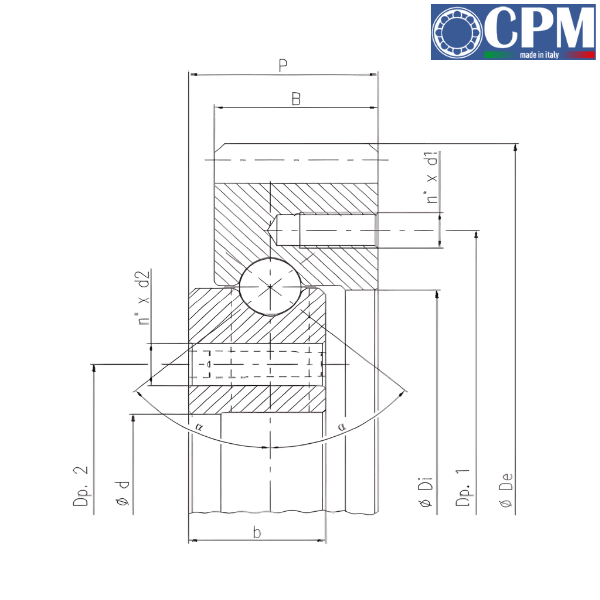

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 386 mm
Outer Diameter (De) - 598 mm
Dimension (Di) - 475 mm
Width (B) - 75 mm
Dimension (b) - 60 mm
Dimension (P) - 83 mm
Dimension (Dp.1) - 525 mm
Dimension (Dp.2) - 419 mm
Dimension (n° × d1) - 24 × M12
Dimension (n° × d2) - 24 × 14
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 474 kN
Basic Static Load Rating (Coa) - 2825 kN
♦♦ Images are for representation purposes only
Part Number - 2570 CPM
Category - Geared Slewing Bearing
Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 386 mm
Outer Diameter (De) - 598 mm
Dimension (Di) - 475 mm
Width (B) - 75 mm
Dimension (b) - 60 mm
Dimension (P) - 83 mm
Dimension (Dp.1) - 525 mm
Dimension (Dp.2) - 419 mm
Dimension (n° × d1) - 24 × M12
Dimension (n° × d2) - 24 × 14
Angle (α) - 50°
Basic Dynamic Load Rating (Ca) - 474 kN
Basic Static Load Rating (Coa) - 2825 kN
♦♦ Images are for representation purposes only
