Description
Brand - CPM
Part Number - 2557 CPM
Category - Slewing Bearing
Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 210 mm
Width (B) - 22 mm
Dimension (b) - 22 mm
Dimension (P) - 22 mm
Dimension (Dp. 2) - 149 mm
Dimension (n° × d2) - 12xM8
Angle (α) - 45°
Basic Dynamic Load Rating (Cr) - 78.5 kN
Basic Static Load Rating (Cor) - 102 kN

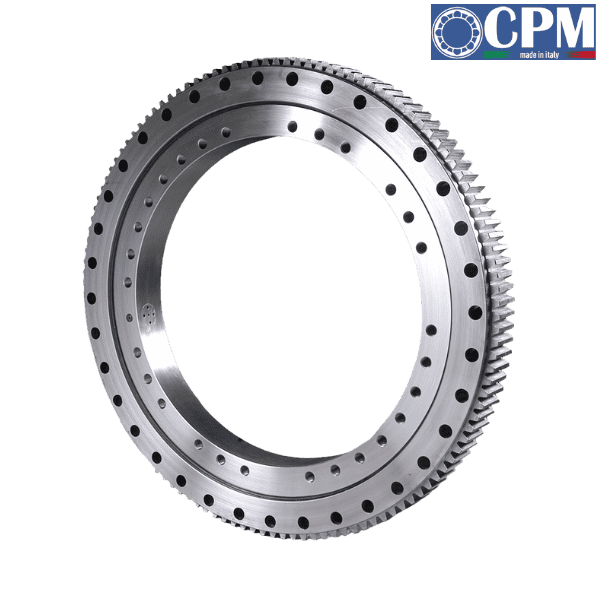

♦♦ Images are for representation purposes only
Part Number - 2557 CPM
Category - Slewing Bearing
Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 210 mm
Width (B) - 22 mm
Dimension (b) - 22 mm
Dimension (P) - 22 mm
Dimension (Dp. 2) - 149 mm
Dimension (n° × d2) - 12xM8
Angle (α) - 45°
Basic Dynamic Load Rating (Cr) - 78.5 kN
Basic Static Load Rating (Cor) - 102 kN
♦♦ Images are for representation purposes only
