Description
Brand - CPM
Part Number - 2542 CPM
Category - Universal Joint Bearing (Cardan Shafts)
Type - F
Type F - Flanged

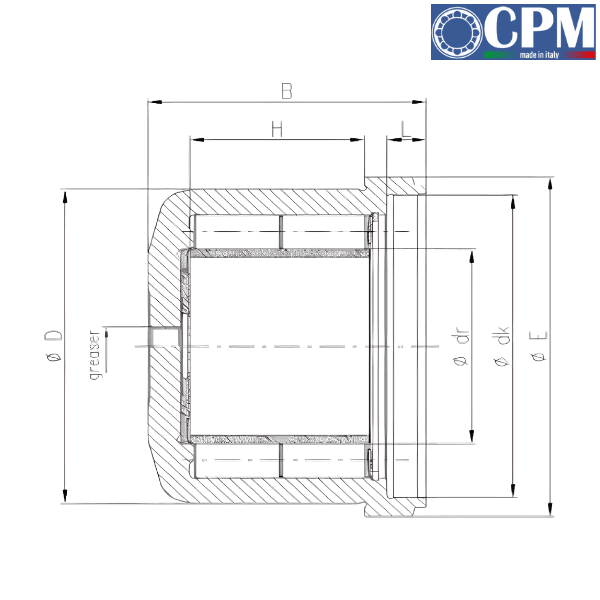

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 74 mm
Inner Diameter (dr) - 45.8 mm
Width (B) - 58 mm
Dimension (H) - 37.5 mm
Dimension (dk) - 63 mm
Dimension (L) - 10.3 mm
Dimension (E) - 82 mm
Basic Dynamic Radial Load Rating (Cr) - 126.4 kN
Basic Static Radial Load Rating (Cor) - 191.3 kN
♦♦ Images are for representation purposes only
