Description
Brand - CPM
Part Number - 2490 CPM
Category - Geared Slewing Bearing

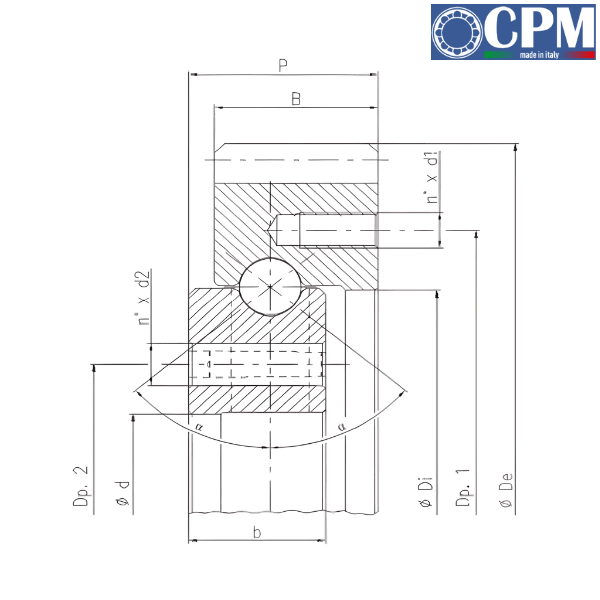

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 196 mm
Outer Diameter (De) - 248.5 mm
Dimension (Di) - 240 mm
Width (B) - 25.5 mm
Dimension (b) - 23.0 mm
Dimension (P) - 26 mm
Dimension (Dp.1) - 231 mm
Dimension (Dp.2) - 204 mm
Dimension (n° × d1) - 8 × M6
Dimension (n° × d2) - 12 × 6.4
Angle (α) - 30°
Basic Dynamic Load Rating (Cr) - 50.2 kN
Basic Static Load Rating (Cor) - 126.8 kN
♦♦ Images are for representation purposes only
Part Number - 2490 CPM
Category - Geared Slewing Bearing
Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 196 mm
Outer Diameter (De) - 248.5 mm
Dimension (Di) - 240 mm
Width (B) - 25.5 mm
Dimension (b) - 23.0 mm
Dimension (P) - 26 mm
Dimension (Dp.1) - 231 mm
Dimension (Dp.2) - 204 mm
Dimension (n° × d1) - 8 × M6
Dimension (n° × d2) - 12 × 6.4
Angle (α) - 30°
Basic Dynamic Load Rating (Cr) - 50.2 kN
Basic Static Load Rating (Cor) - 126.8 kN
♦♦ Images are for representation purposes only
