2445 - 2536 CPM

Brand - CPM
Part Number - 2445 - 2536 CPM
Category - Slewing Bearing

Principal Dimensions & Load Ratings (Metric):
Inner Diameter (d) - 82 mm
Outer Diameter (D) - 260 mm
Width (B) - 23.5 mm
Dimension (b) - 18 mm
Dimension (P) - 23.5 mm
Dimension (Dp. 1) - 240 mm
Dimension (Dp. 2) - Available on Request
Dimension (n° × d1) - 6xM10
Dimension (n° × d2) - Available on Request
Angle (α) - 35°
Basic Dynamic Load Rating (Cr) - 50.7 kN
Basic Static Load Rating (Cor) - 86.1 kN

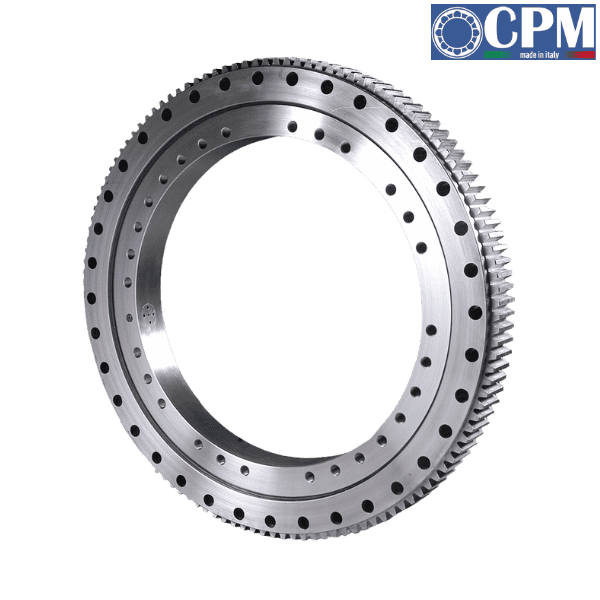

♦♦ Images are for representation purposes only
