Description
Brand - FAG
Item Number - 24140-BE-XL-2VSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 49.5
Inner Diameter (d) mm - 200
Outer Diameter (D) mm - 340
Width (B) mm - 140
Minimum Chamfer Dimension (r) mm - 3
Outer Ring Bore Diameter (D1) mm - 309.5
Inner Ring Raceway Diameter (d2) mm - 216.2
Lubrication Hole Diameter (ds) mm - 6.3
Lubrication Groove Width (ns) mm - 12.2

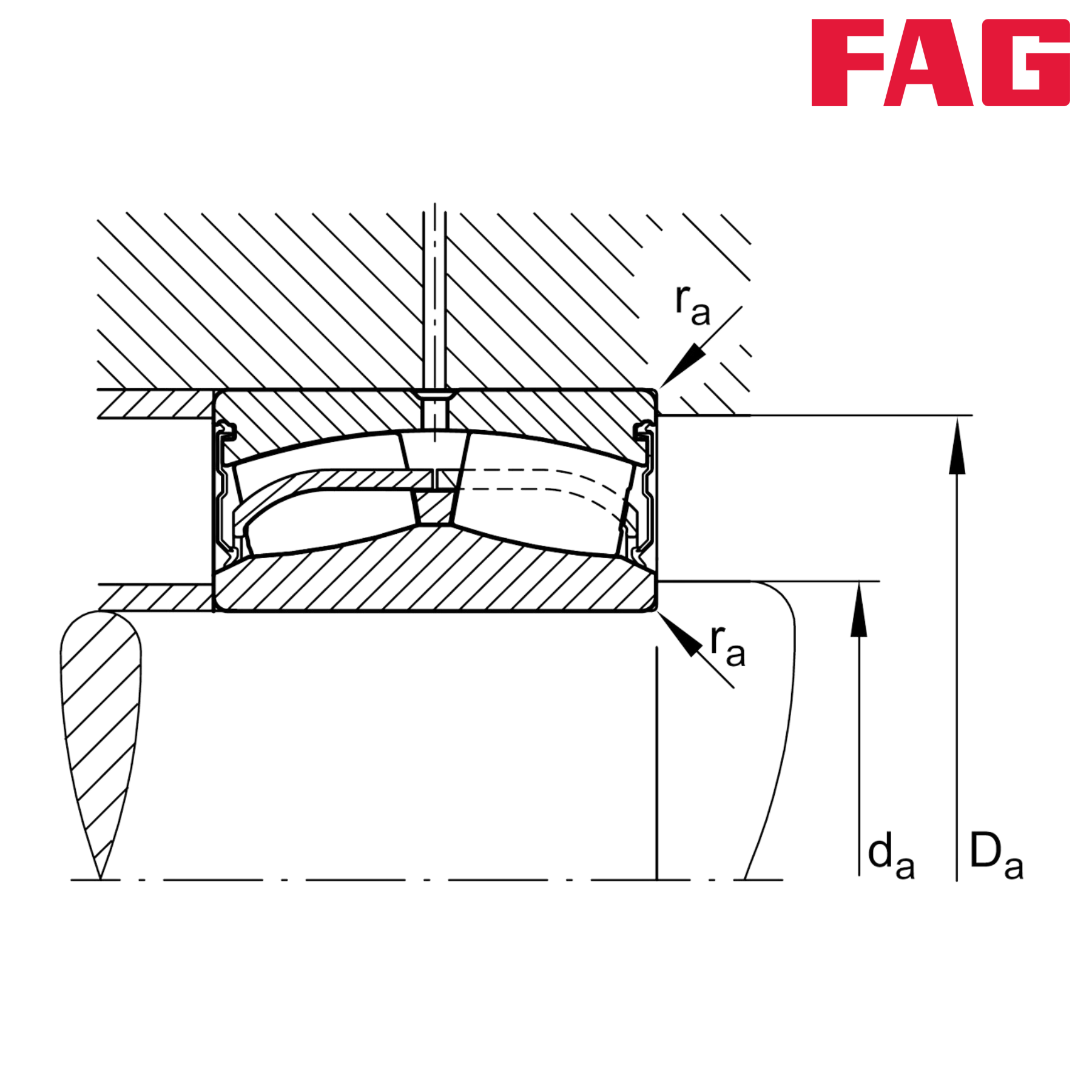

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 214
Maximum Housing Connection Diameter (Da) mm - 326
Maximum Undercut Radius (ra) mm - 2.5
Basic dynamic Radial Load Rating (Cr) N - 1880000
Basic Static Radial Load Rating (C0r) N - 2800000
Calculation Factor (e) - 0.39
Calculation Factor (Y1) - 1.71
Calculation Factor (Y2) - 2.54
Calculation Factor (Y0) - 1.67
Radial Fatigue Load Limit (Cur) N - 260000
Limiting Speed (nG) 1/min - 445
Suffixes:
BE - Floating Rib Washer on Inner Ring
XL - X-Life
2VSR - Steel-Reinforced Lip Seal on Both Sides Made From Fluoro Rubber (FKM), Grease Filling Level 55% to 65%, Filled With High-Temperature Grease
** Images are for representation purposes only
