24126-BE-XL-2VSR FAG

Brand - FAG
Item Number - 24126-BE-XL-2VSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 11
Inner Diameter (d) mm - 130
Outer Diameter (D) mm - 210
Width (B) mm - 80
Minimum Chamfer Dimension (r) mm - 2
Outer Ring Bore Diameter (D1) mm - 196.1
Inner Ring Raceway Diameter (d2) mm - 143.1
Lubrication Hole Diameter (ds) mm - 3.2
Lubrication Groove Width (ns) mm - 6.5

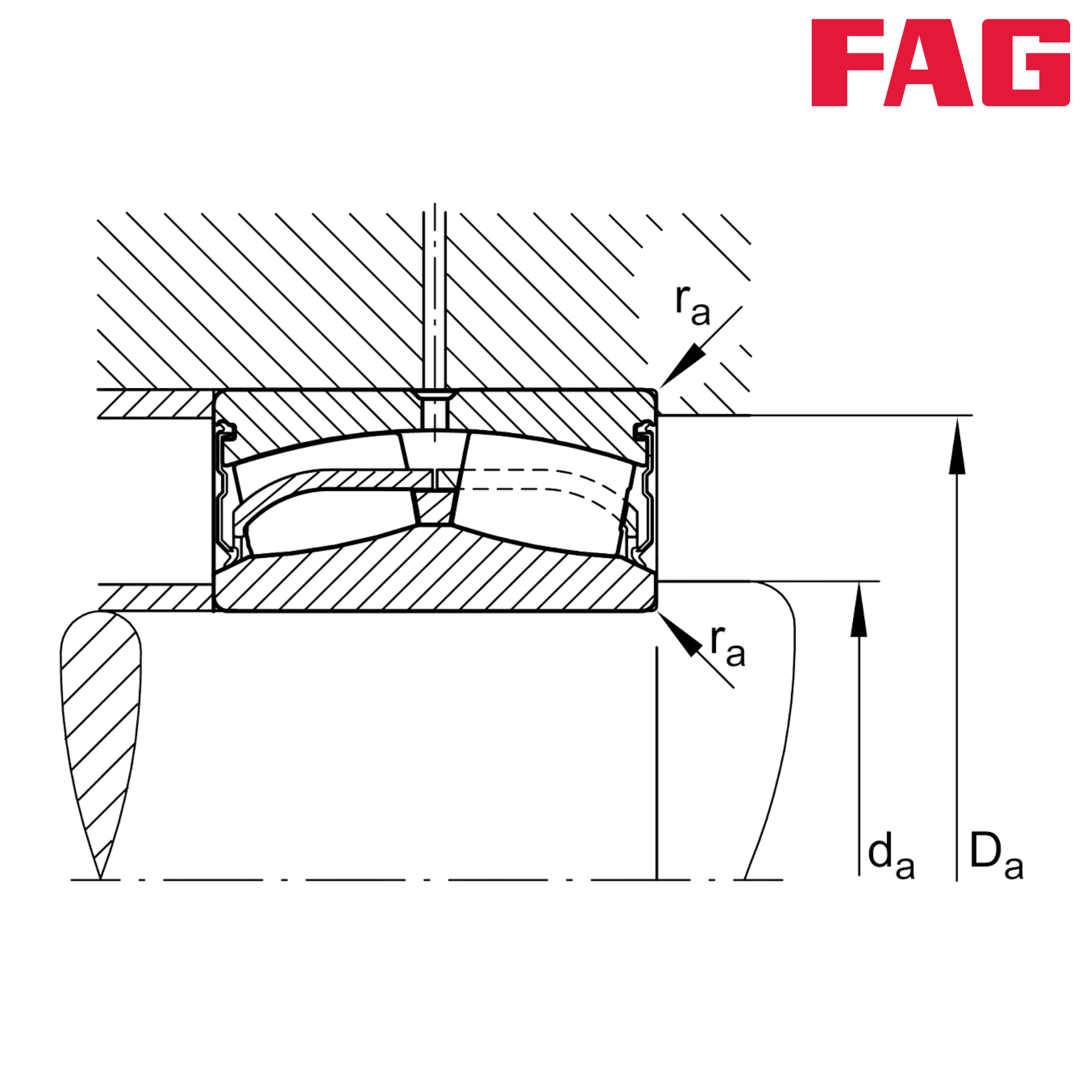

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 141
Maximum Housing Connection Diameter (Da) mm - 199
Maximum Undercut Radius (ra) mm - 2
Basic dynamic Radial Load Rating (Cr) N - 710000
Basic Static Radial Load Rating (C0r) N - 1050000
Calculation Factor (e) - 0.34
Calculation Factor (Y1) - 1.98
Calculation Factor (Y2) - 2.94
Calculation Factor (Y0) - 1.93
Radial Fatigue Load Limit (Cur) N - 112000
Limiting Speed (nG) 1/min - 700

Suffixes:
BE - Floating Rib Washer on Inner Ring
XL - X-Life
2VSR - Steel-Reinforced Lip Seal on Both Sides Made From Fluoro Rubber (FKM), Grease Filling Level 55% to 65%, Filled With High-Temperature Grease
