Description
Brand - FAG

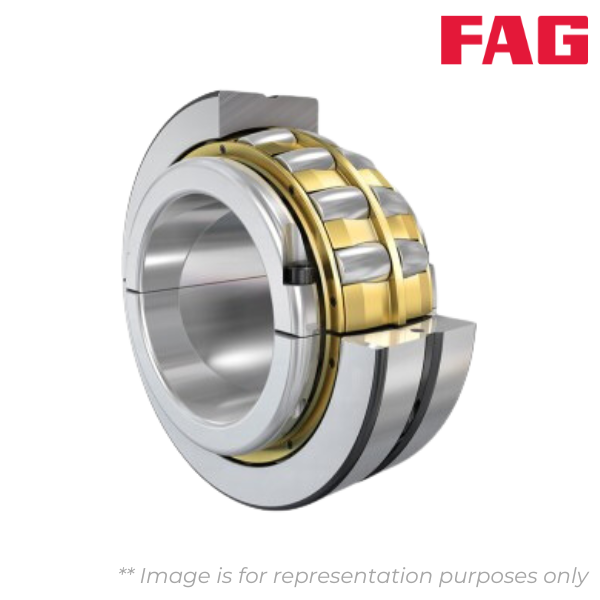

Item Number - 240SM400-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 385

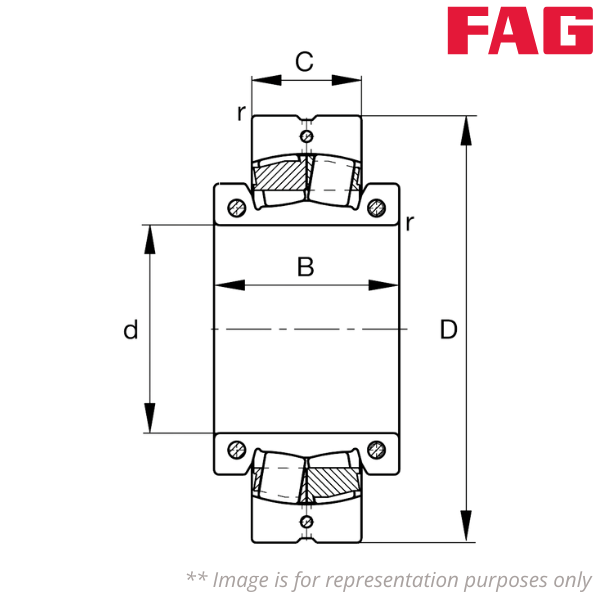

Inner Diameter (d) mm - 400
Outer Diameter (D) mm - 620
Outer Ring Width (C) mm - 200
Inner Ring Width (B) mm - 290
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 3750
Basic Radial Static Load Rating (C0r) kN - 8000
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.32
Dynamic Axial Load Factor (Y1) - 2.13
Dynamic Axial Load Factor (Y2) - 3.17
Static Axial Load Factor (Y0) - 2.08
Fatigue Radial Load Limit (Cur) kN - 630
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 190
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 69
Bearing Designation - 24084K30
Adapter Sleeve - H24084HG
