Description
Brand - SKF

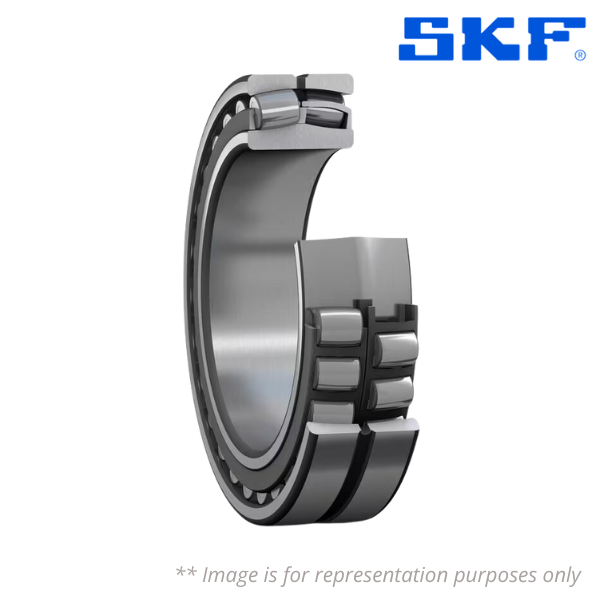

Item Number - 24056CC/C08W503 SKF
Also known as - 24056CC 24056CC/C08 24056CC/W33
Category - Spherical Roller Bearing
Inner (d) MM - 280
Outer (D) MM - 420
Width (B) MM - 140
Inner (d) Inch - 11.0236
Outer (D) Inch - 16.5354
Width (B) Inch - 5.5118
Weight (kg) - 81
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
