Description
Brand - FAG
Item Number - 24030-S-K30-MB-S2-C4 FAG
Category - Spherical Roller Bearing
Inner (d) MM - 150
Outer (D) MM - 225
Width (B) MM - 75
Weight (kg) - 10.55
Bore - K3 – 1:30 Tapered Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - S2 - Temperatures up to 250 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
S - Lubrication Groove And Three Holes In Bearing Outer Ring

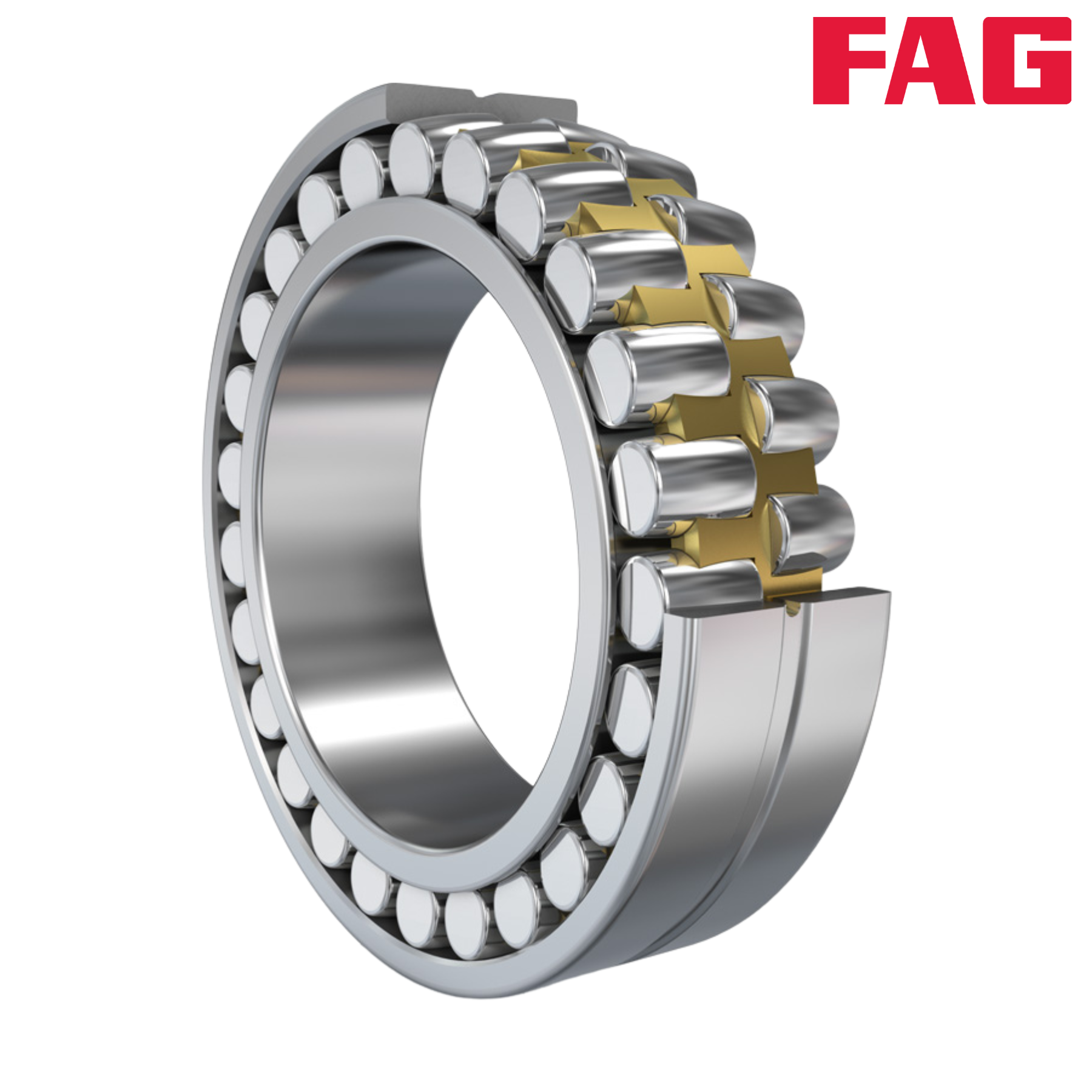

** Image is for representation purposes only
