Description
Brand - FAG
Item Number - 24030-BE-XL-2VSR-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0755833300030 24030-BE-2VSR-C3
EAN - 4054369502565
Inner (d) MM - 150
Outer (D) MM - 225
Width (B) MM - 75
Inner (d) Inch - 5.9055
Outer (D) Inch - 8.8583
Width (B) Inch - 2.9528
Weight (kg) - 10.5
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - 2RS2 - Fluoro Rubber Seals / High Temperature
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1090000
Radial Dynamic Load Rating Cr (N) - 680000

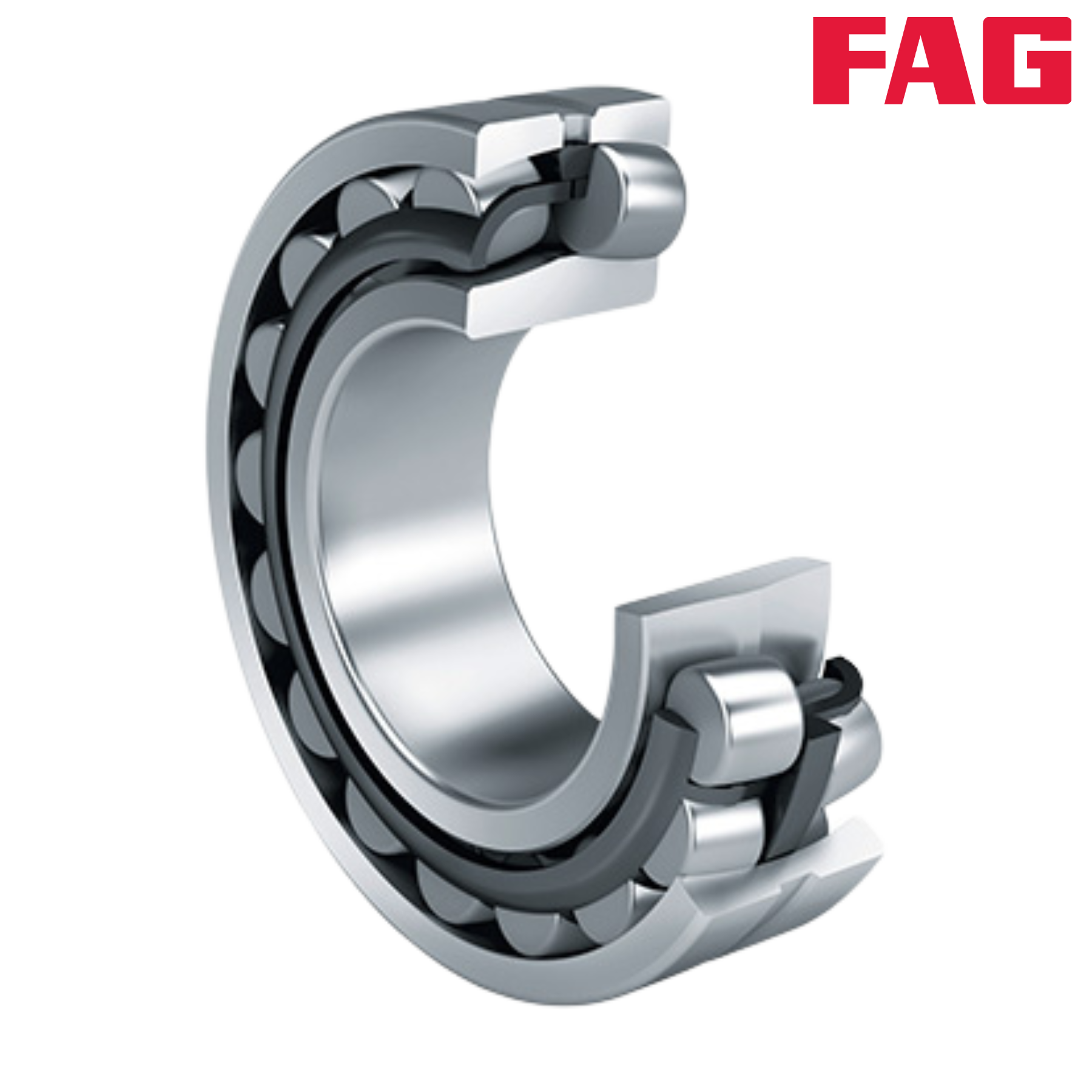

** Image is for representation purposes only
