24028-BE-XL-2VSR FAG

Brand - FAG
Item Number - 24028-BE-XL-2VSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 8.4
Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 210
Width (B) mm - 69
Minimum Chamfer Dimension (r) mm - 2
Outer Ring Bore Diameter (D1) mm - 198.5
Inner Ring Raceway Diameter (d2) mm - 153.3
Lubrication Hole Diameter (ds) mm - 3.2
Lubrication Groove Width (ns) mm - 6.5

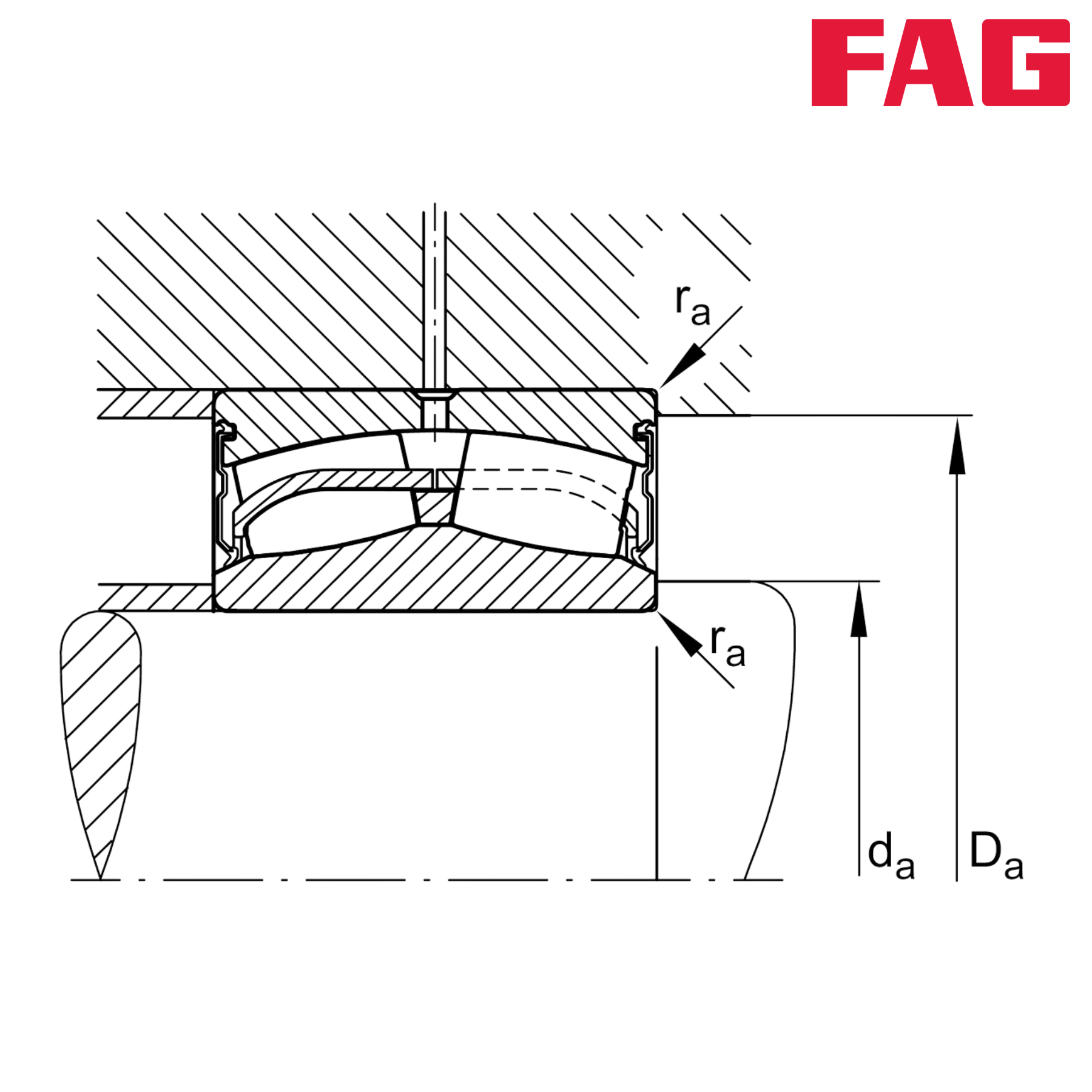

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 148.8
Maximum Housing Connection Diameter (Da) mm - 201.2
Maximum Undercut Radius (ra) mm - 2
Basic dynamic Radial Load Rating (Cr) N - 590000
Basic Static Radial Load Rating (C0r) N - 930000
Calculation Factor (e) - 0.28
Calculation Factor (Y1) - 2.37
Calculation Factor (Y2) - 3.53
Calculation Factor (Y0) - 2.32
Radial Fatigue Load Limit (Cur) N - 111000
Limiting Speed (nG) 1/min - 740

Suffixes:
BE - Floating Rib Washer on Inner Ring
XL - X-Life
2VSR - Steel-Reinforced Lip Seal on Both Sides Made From Fluoro Rubber (FKM), Grease Filling Level 55% to 65%, Filled With High-Temperature Grease

** Images are for representation purposes only
