Description

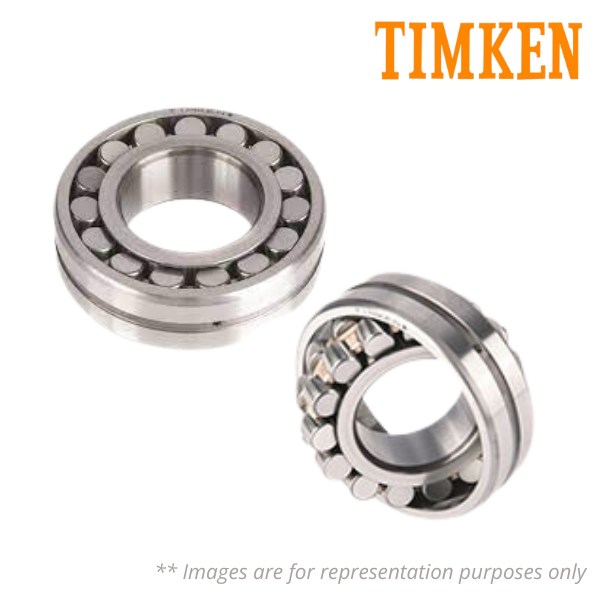

Brand - TIMKEN
Item Number - 23960YMBW507C08C3 TIMKEN
Category - Spherical Roller Bearing
Inner (d) MM - 300
Outer (D) MM - 420
Width (B) MM - 90
Inner (d) Inch - 11.811
Outer (D) Inch - 16.5354
Width (B) Inch - 3.5433
Weight (kg) - 40
Bore - C - Cylindrical Bore
Lubrication Enhancement - W57 - W4 + W31 + W33 Combined
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
YMB - One Piece Brass, Finger Type, Land Piloted
W507 - Combination Of W4 (Mark High And Low Points Of Eccentricity On Face Of Rings) And W31 (Bearing Inspected To Certain Quality Control Requirements) And W33 (Lubrication Groove And Three Holes In Bearing Outer Ring)
