234780-M-SP FAG

Brand - FAG
Item Number - 234780-M-SP FAG

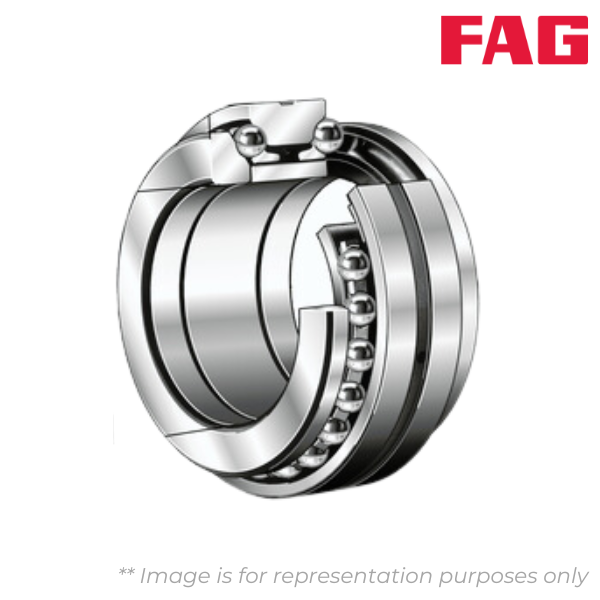

Category - Double Direction Axial Angular Contact Ball bearing
Weight (Kg) - 187

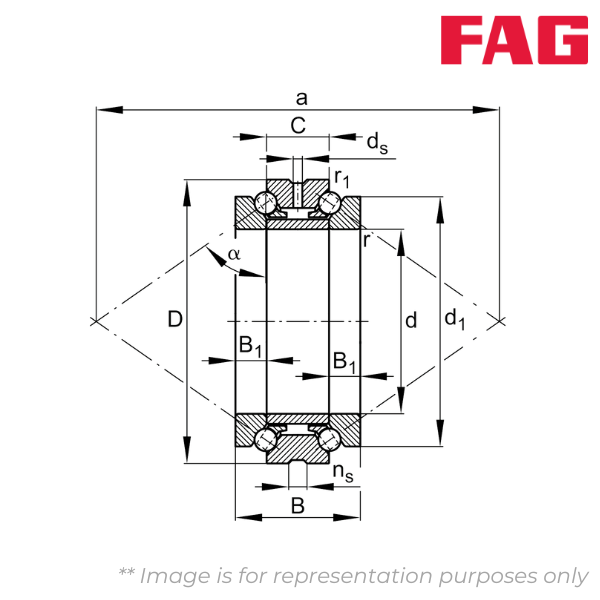

Inner Diameter (d) mm - 410
Outer Diameter (D) mm - 600
Width (B) mm - 236
Width, Outer Ring (C) mm - 118
Rip Diameter Shaft Washer (d1) mm - 532
Height Wave Disc (B1) MM - 59
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 2
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubrication Groove (ns) mm - 17.7

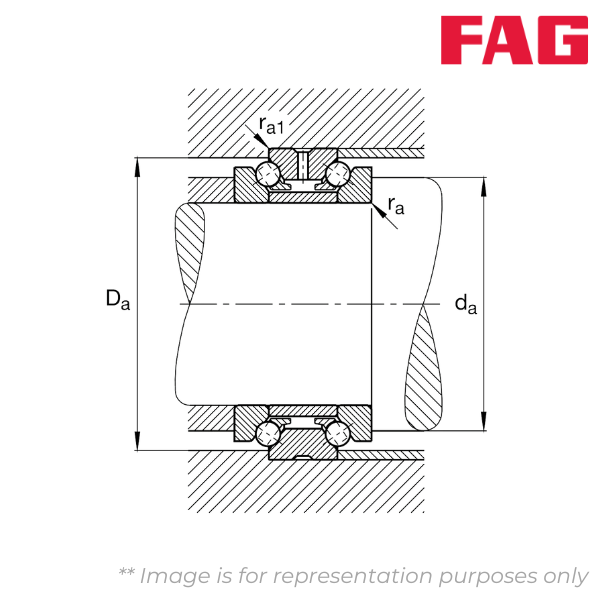

Diameter Shaft Shoulder (da) mm - 480
Diameter Shaft Shoulder Clearance (da) - h12
Shoulder Diameter Outer Ring (Da) mm - 561.5
Shoulder Diameter Outer Ring Clearance (Da) - h12
Maximum Recess Radius (ra) mm - 4
Maximum Recess Radius (ra1) mm - 2
Basic Dynamic Load Rating, Axial (Ca) kN - 680
Basic Static Load Rating, Axial (C0a) kN - 3650
Fatigue Limit Load (Cua) kN - 147
Limiting Speed for Grease Lubrication (nG) rpm - 900
Limiting Speed for Oil Lubrication (nG) rpm - 1300
