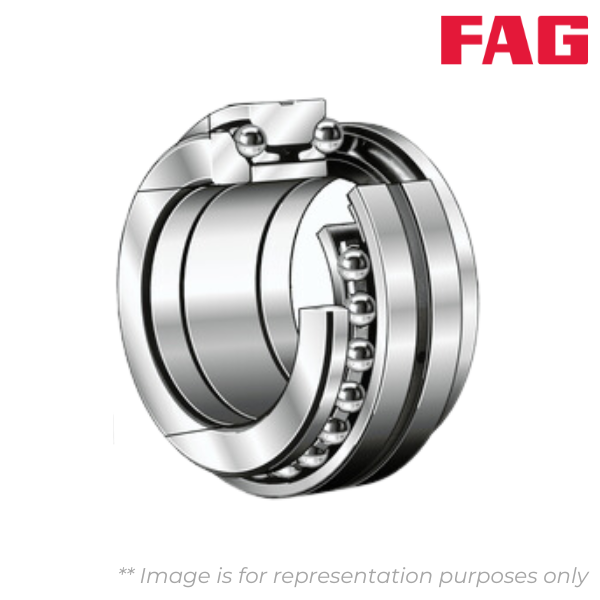

234756-M-SP FAG

Brand - FAG
Item Number - 234756-M-SP FAG
Category - Double Direction Axial Angular Contact Ball bearing
Weight (Kg) - 54.5

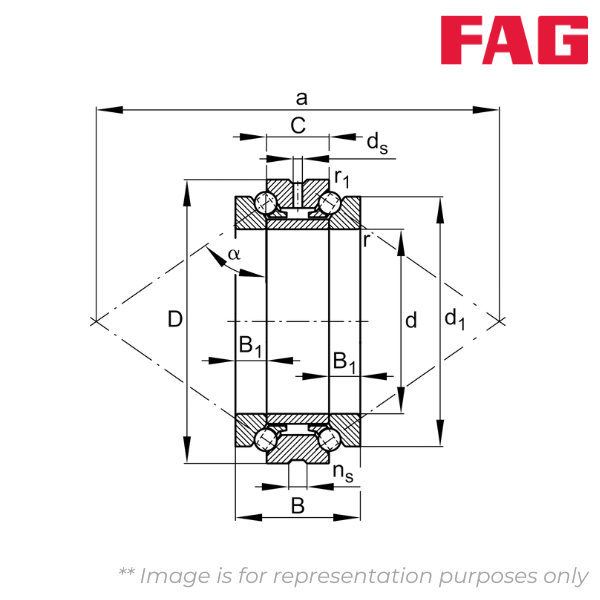

Inner Diameter (d) mm - 289
Outer Diameter (D) mm - 420
Width (B) mm - 164
Width, Outer Ring (C) mm - 82
Rip Diameter Shaft Washer (d1) mm - 374
Height Wave Disc (B1) MM - 41
Minimum Chamfer Dimension (r) mm - 4
Minimum Chamfer Dimension (r1) mm - 1.5
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubrication Groove (ns) mm - 17.7

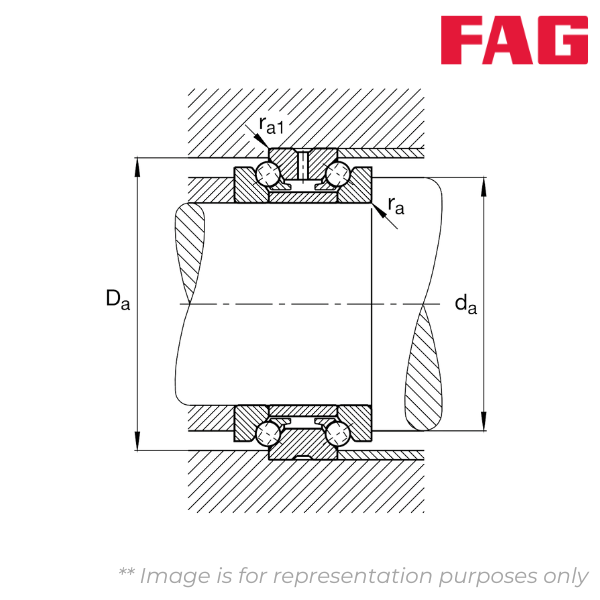

Diameter Shaft Shoulder (da) mm - 337.5
Diameter Shaft Shoulder Clearance (da) - h12
Shoulder Diameter Outer Ring (Da) mm - 394.5
Shoulder Diameter Outer Ring Clearance (Da) - h12
Maximum Recess Radius (ra) mm - 3
Maximum Recess Radius (ra1) mm - 1.5
Basic Dynamic Load Rating, Axial (Ca) kN - 415
Basic Static Load Rating, Axial (C0a) kN - 1790
Fatigue Limit Load (Cua) kN - 86
Limiting Speed for Grease Lubrication (nG) rpm - 1300
Limiting Speed for Oil Lubrication (nG) rpm - 1800
