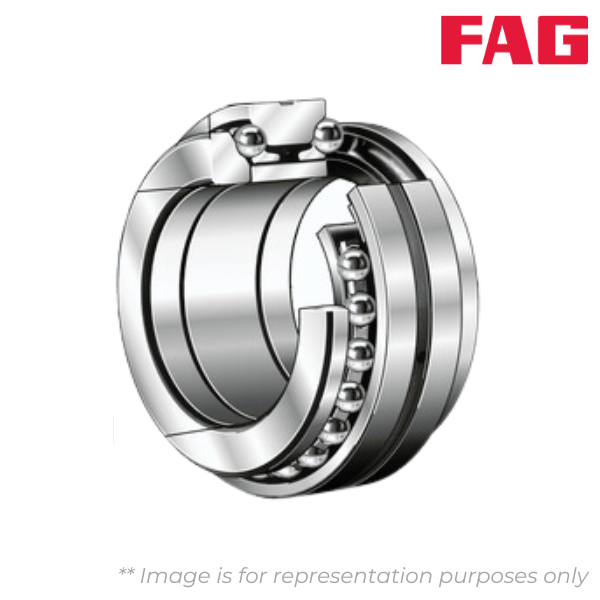

234744-M-SP FAG

Brand - FAG
Item Number - 234744-M-SP FAG
Category - Double Direction Axial Angular Contact Ball bearing
Weight (Kg) - 35.3

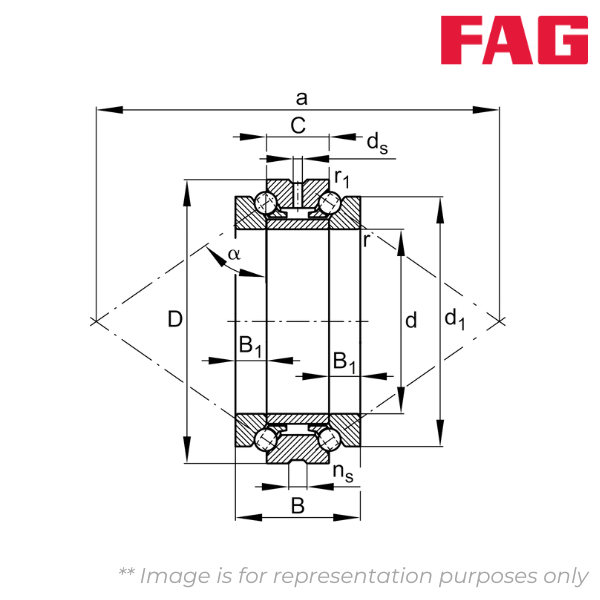

Inner Diameter (d) mm - 228
Outer Diameter (D) mm - 340
Width (B) mm - 144
Width, Outer Ring (C) mm - 72
Rip Diameter Shaft Washer (d1) mm - 304
Height Wave Disc (B1) MM - 36
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 1.1
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubrication Groove (ns) mm - 17.7

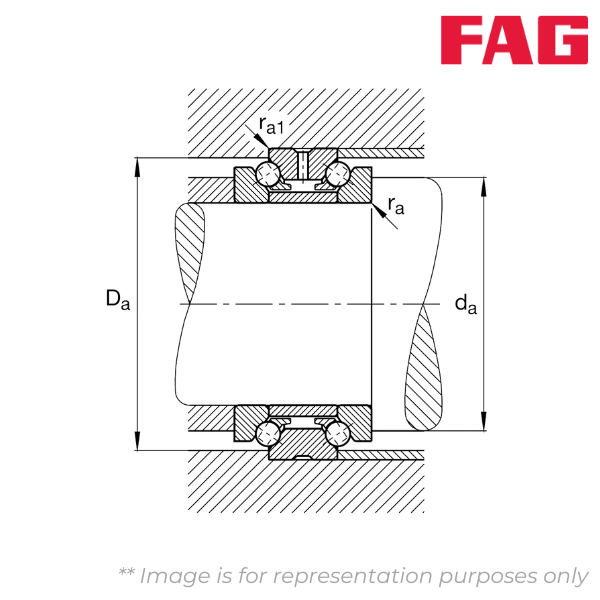

Diameter Shaft Shoulder (da) mm - 269
Diameter Shaft Shoulder Clearance (da) - h12
Shoulder Diameter Outer Ring (Da) mm - 318
Shoulder Diameter Outer Ring Clearance (Da) - h12
Maximum Recess Radius (ra) mm - 2.5
Maximum Recess Radius (ra1) mm - 1
Basic Dynamic Load Rating, Axial (Ca) kN - 340
Basic Static Load Rating, Axial (C0a) kN - 1330
Fatigue Limit Load (Cua) kN - 71
Limiting Speed for Grease Lubrication (nG) rpm - 1600
Limiting Speed for Oil Lubrication (nG) rpm - 2200
