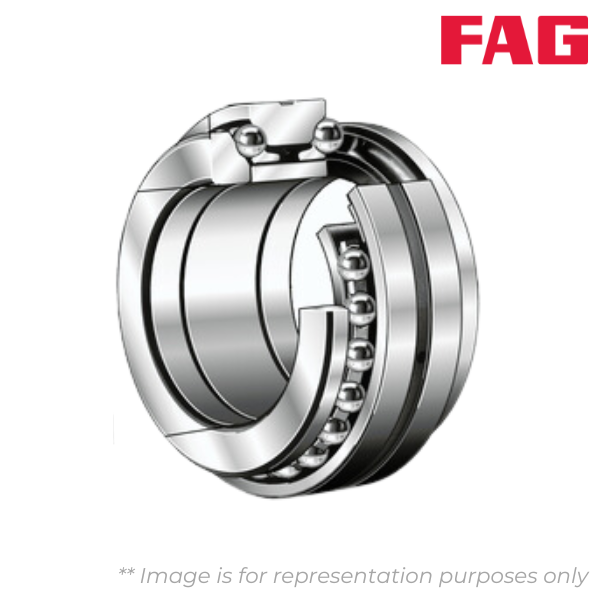

2347/500-M-SP FAG

Brand - FAG
Item Number - 2347/500-M-SP FAG
Category - Double Direction Axial Angular Contact Ball bearing
Weight (Kg) - 283

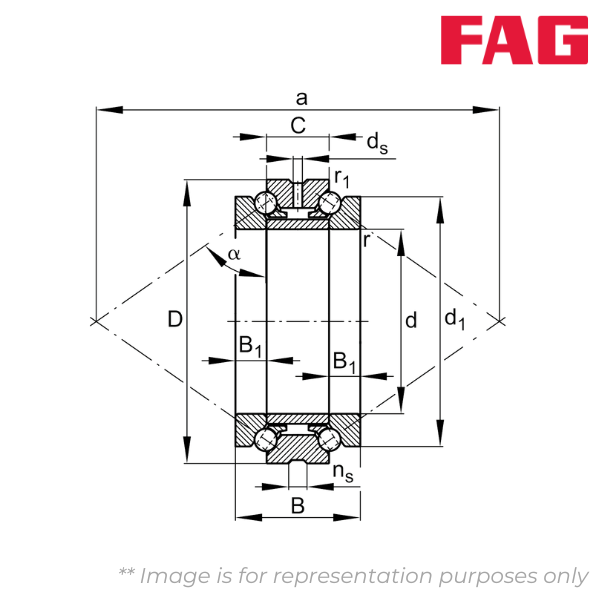

Inner Diameter (d) mm - 515
Outer Diameter (D) mm - 720
Width (B) mm - 256
Width, Outer Ring (C) mm - 128
Rip Diameter Shaft Washer (d1) mm - 650
Height Wave Disc (B1) MM - 64
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 3
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubrication Groove (ns) mm - 17.7

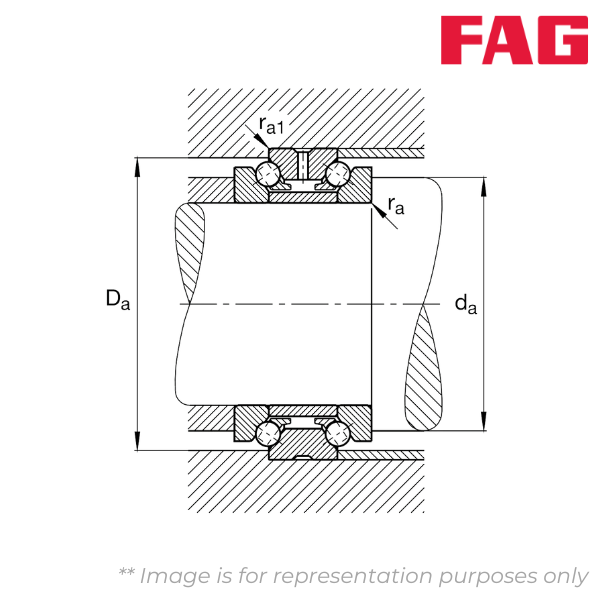

Diameter Shaft Shoulder (da) mm - 591
Diameter Shaft Shoulder Clearance (da) - h12
Shoulder Diameter Outer Ring (Da) mm - 680
Shoulder Diameter Outer Ring Clearance (Da) - h12
Maximum Recess Radius (ra) mm - 6
Maximum Recess Radius (ra1) mm - 3
Basic Dynamic Load Rating, Axial (Ca) kN - 800
Basic Static Load Rating, Axial (C0a) kN - 4800
Fatigue Limit Load (Cua) kN - 174
Limiting Speed for Grease Lubrication (nG) rpm - 750
Limiting Speed for Oil Lubrication (nG) rpm - 1000
