234460-M-SP FAG

Brand - FAG
Item Number - 234460-M-SP FAG

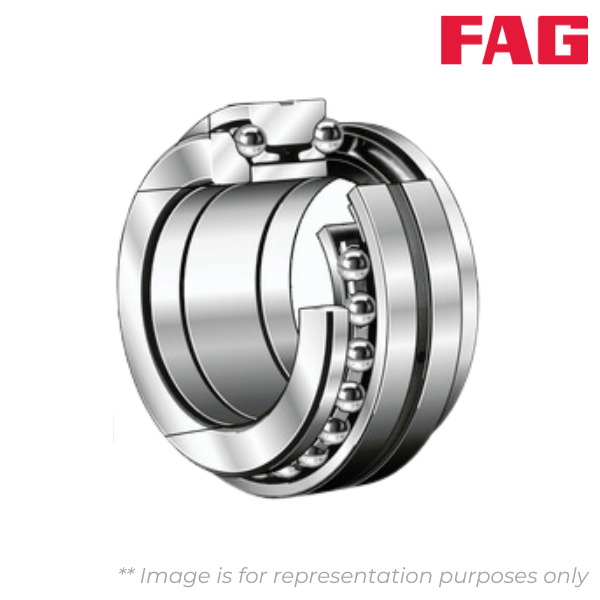

Category - Double Direction Axial Angular Contact Ball bearing
Weight (Kg) - 90.7

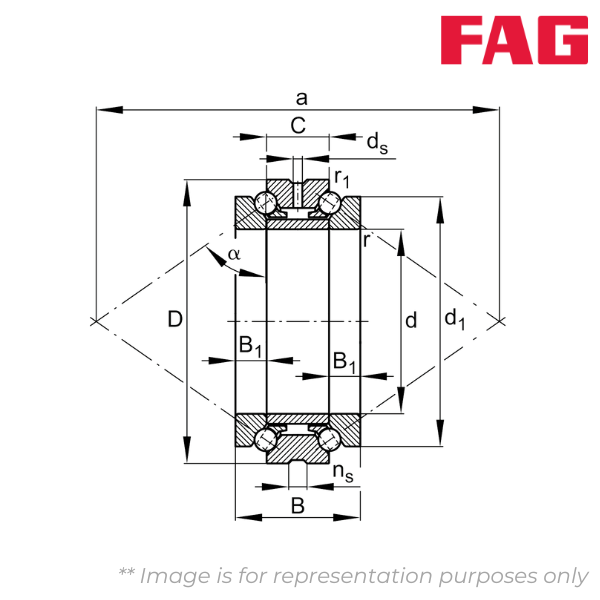

Inner Diameter (d) mm - 300
Outer Diameter (D) mm - 460
Width (B) mm - 190
Width, Outer Ring (C) mm - 95
Rip Diameter Shaft Washer (d1) mm - 406
Height Wave Disc (B1) MM - 47.5
Minimum Chamfer Dimension (r) mm - 4
Minimum Chamfer Dimension (r1) mm - 1.5
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubrication Groove (ns) mm - 17.7

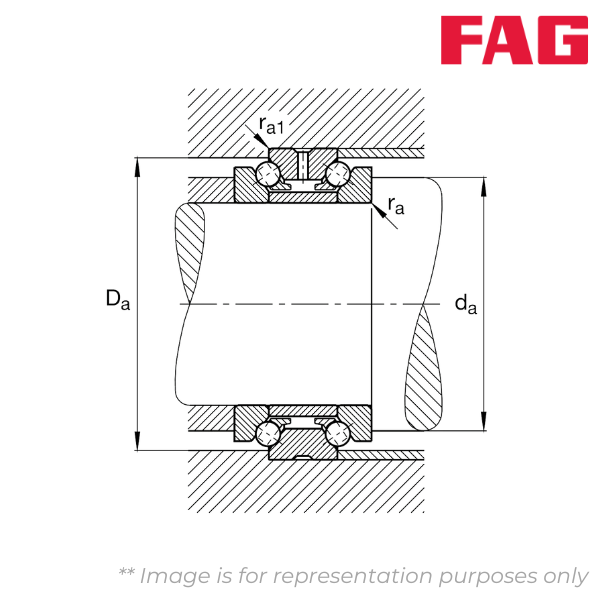

Diameter Shaft Shoulder (da) mm - 366
Diameter Shaft Shoulder Clearance (da) - h12
Shoulder Diameter Outer Ring (Da) mm - 428.5
Shoulder Diameter Outer Ring Clearance (Da) - h12
Maximum Recess Radius (ra) mm - 3
Maximum Recess Radius (ra1) mm - 1.5
Basic Dynamic Load Rating, Axial (Ca) kN - 480
Basic Static Load Rating, Axial (C0a) kN - 2170
Fatigue Limit Load (Cua) kN - 99
Limiting Speed for Grease Lubrication (nG) rpm - 1200
Limiting Speed for Oil Lubrication (nG) rpm - 1700
