234456-M-SP FAG

Brand - FAG
Item Number - 234456-M-SP FAG

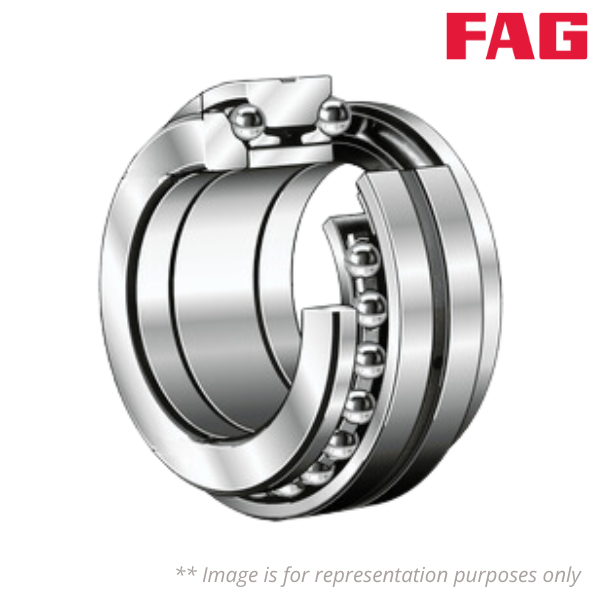

Category - Axial Angular Contact Ball Bearing

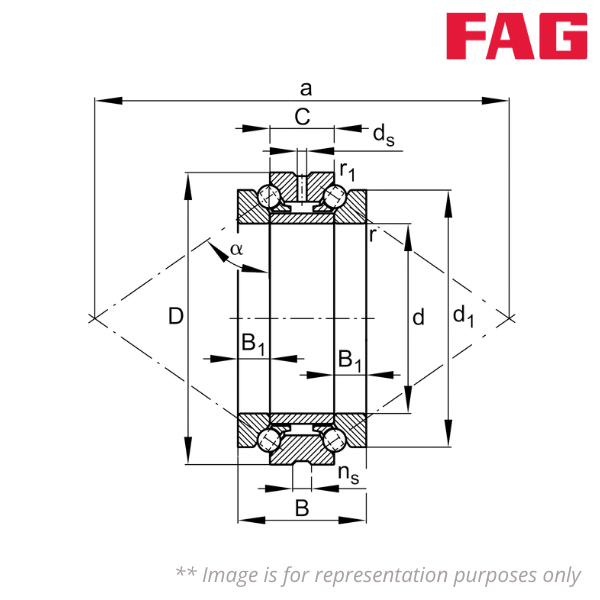

Weight (m) kg - 69
Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 420
Width (B) mm - 164
Width, outer ring (C) mm - 82
Rip Diameter Shaft Washer (d1) mm - 374
Height Wave Disc (B1) mm - 41
Minimum Chamfer Dimension (rmin) mm - 4
Minimum Chamfer Dimension (r1min) mm - 1.5
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubricating Groove (ns) mm - 17.7

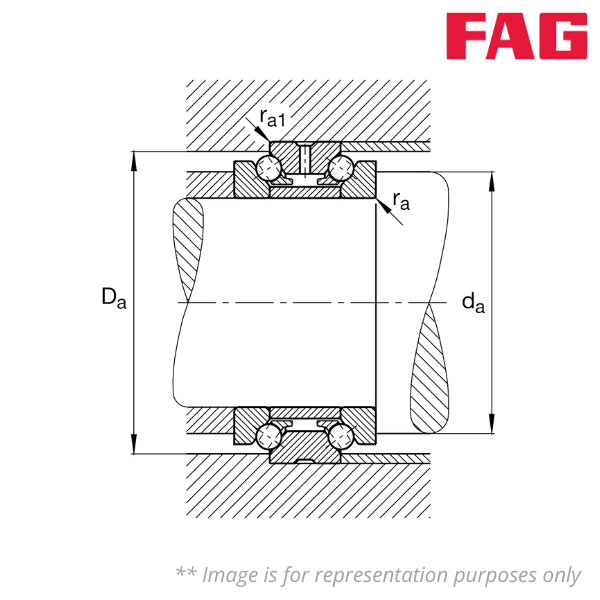

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 337.5
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 394.5
Basic Dynamic Load Rating, Axial (Ca) N - 415000
Basic Static Load Rating, Axial (C0a) N - 1830000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 1300
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 1800
Preload Force (Fv) N - 3000
Lift-off Force (KaE) N - 8542
Axial Rigidity (ca) N/µm - 1920
