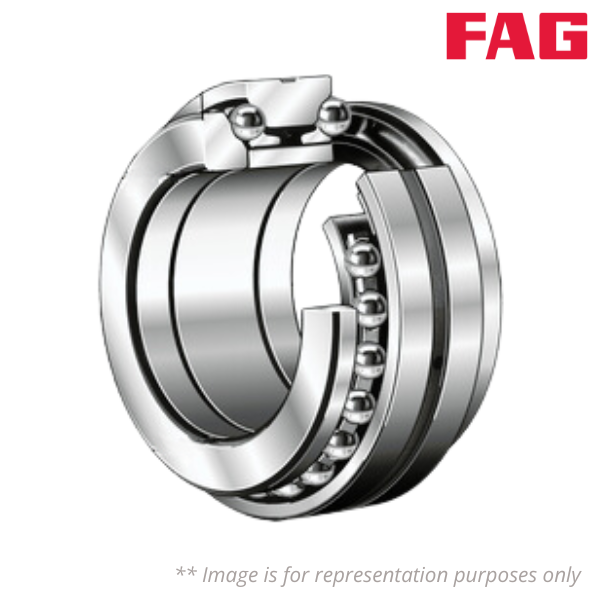

234448-M-SP FAG

Brand - FAG
Item Number - 234448-M-SP FAG
Category - Axial Angular Contact Ball Bearing
Weight (m) kg - 43.8

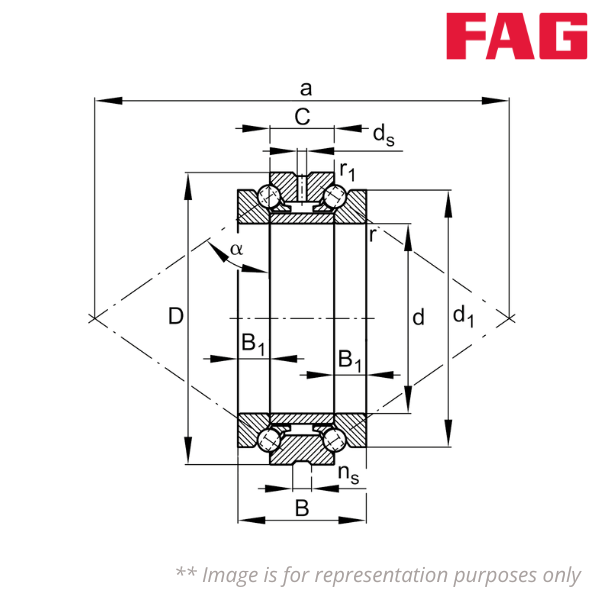

Inner Diameter (d) mm - 240
Outer Diameter (D) mm - 360
Width (B) mm - 144
Width, outer ring (C) mm - 72
Rip Diameter Shaft Washer (d1) mm - 324
Height Wave Disc (B1) mm - 36
Minimum Chamfer Dimension (rmin) mm - 3
Minimum Chamfer Dimension (r1min) mm - 1.1
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubricating Groove (ns) mm - 17.7
Diameter Shaft Shoulder Clearance - h12

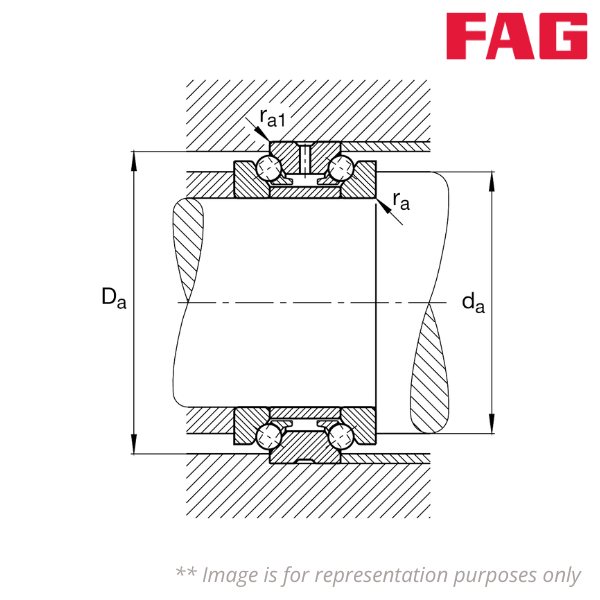

Diameter Shaft Shoulder (da) mm - 289
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 338
Basic Dynamic Load Rating, Axial (Ca) N - 350000
Basic Static Load Rating, Axial (C0a) N - 1420000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 1500
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 2000
Preload Force (Fv) N - 2500
Lift-off Force (KaE) N - 7134
Axial Rigidity (ca) N/µm - 1729
