Description
Brand - SKF
Item Number - 23264CAC/C083W507 SKF
Also known as - 23264EMBW507C08C3

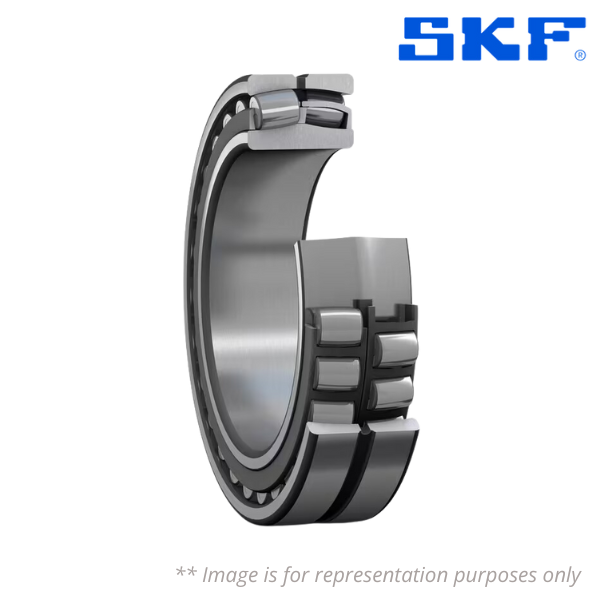

Category - Spherical Roller Bearing
Inner (d) MM - 320
Outer (D) MM - 580
Width (B) MM - 208
Inner (d) Inch - 12.5984
Outer (D) Inch - 22.8346
Width (B) Inch - 8.189
Weight (kg) - 243
Bore - C - Cylindrical Bore
Lubrication Enhancement - W57 - W4 + W31 + W33 Combined
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
