Description
Brand - FAG
Item Number - 23224-E1-XL-TVPB-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0190016060040 23224-E1-TVPB-C4
EAN - 4026677872388
Inner (d) MM - 120
Outer (D) MM - 215
Width (B) MM - 76
Inner (d) Inch - 4.7244
Outer (D) Inch - 8.4646
Width (B) Inch - 2.9921
Weight (kg) - 11.4
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1020000
Radial Dynamic Load Rating Cr (N) - 820000

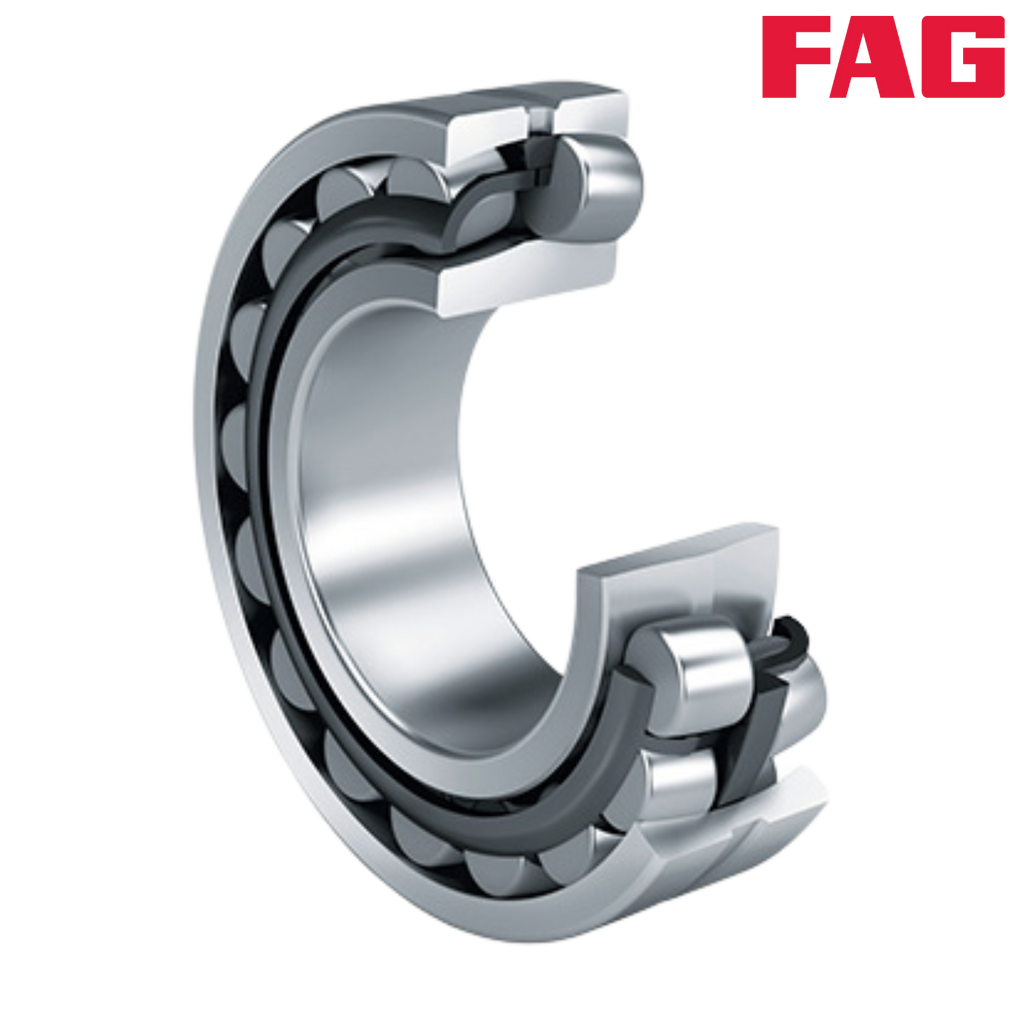

** Image is for representation purposes only
