Description
Brand - FAG
Item Number - 231SM170-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 40.6

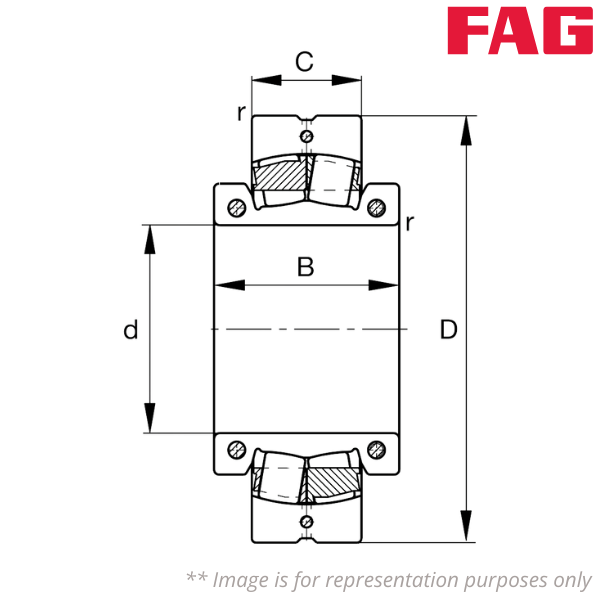

Inner Diameter (d) mm - 170
Outer Diameter (D) mm - 320
Outer Ring Width (C) mm - 104
Inner Ring Width (B) mm - 142
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 915
Basic Radial Static Load Rating (C0r) kN - 1430
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.28
Dynamic Axial Load Factor (Y1) - 2.37
Dynamic Axial Load Factor (Y2) - 3.53
Static Axial Load Factor (Y0) - 2.32
Fatigue Radial Load Limit (Cur) kN - 114
Maximum Axial Load (Fa) - 22
Limiting speed (nG) min–1 - 630
Tightening Torque Clamping Screw (Ni) Nm - 69
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 23138K
Adapter Sleeve - H3138
Housing - SD3138-H-TS
