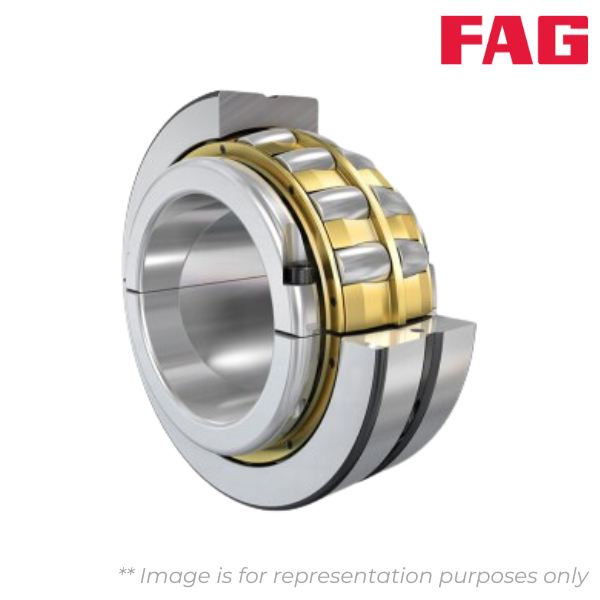

Description
Brand - FAG
Item Number - 231SM140-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 25.8

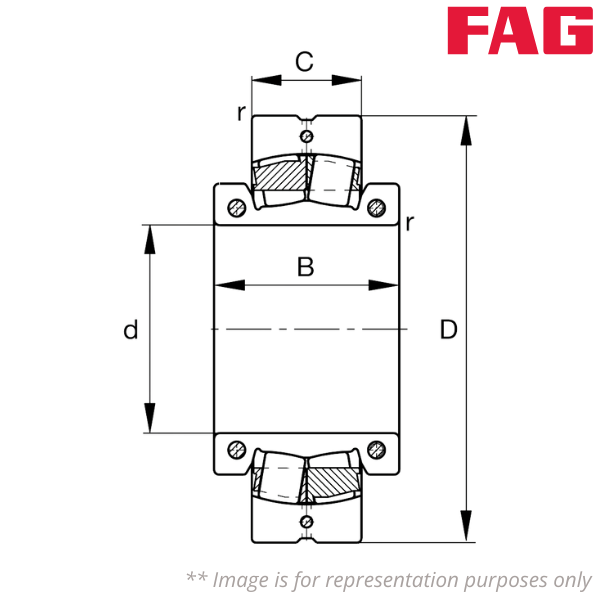

Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 270
Outer Ring Width (C) mm - 86
Inner Ring Width (B) mm - 135
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 710
Basic Radial Static Load Rating (C0r) kN - 1040
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y1) - 2.32
Dynamic Axial Load Factor (Y2) - 3.45
Static Axial Load Factor (Y0) - 2.26
Fatigue Radial Load Limit (Cur) kN - 87
