Description
Brand - FAG
Item Number - 231SM125-MA FAG

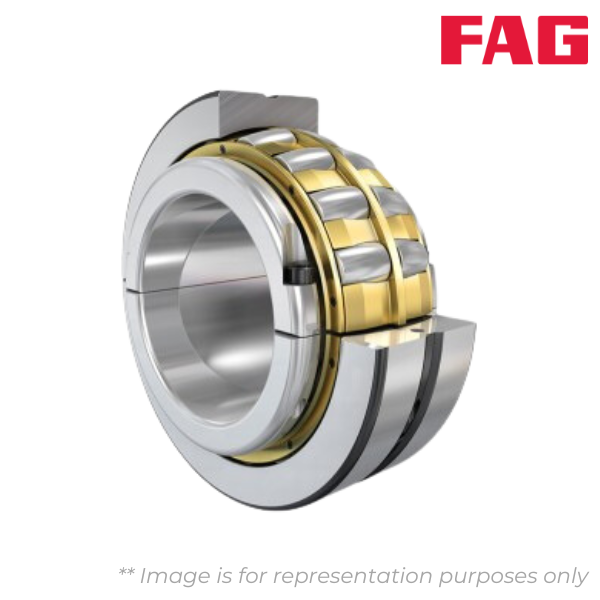

Category - Split Spherical Roller Bearing
Weight (m) kg - 13.5

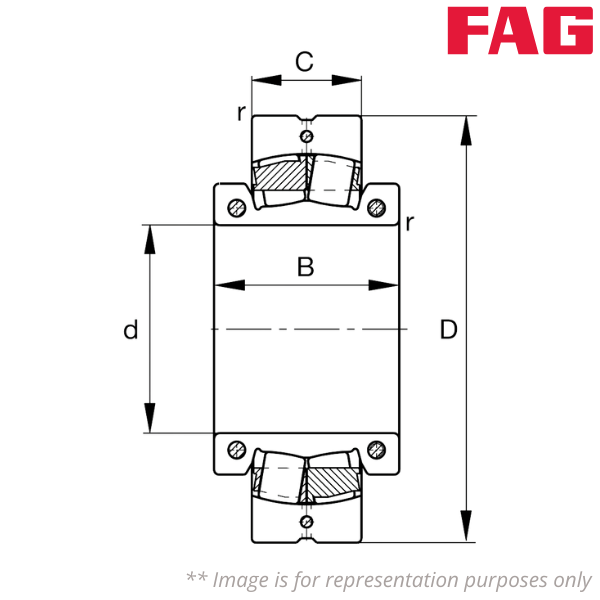

Inner Diameter (d) mm - 125
Outer Diameter (D) mm - 225
Outer Ring Width (C) mm - 68
Inner Ring Width (B) mm - 110
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 510
Basic Radial Static Load Rating (C0r) kN - 750
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.28
Dynamic Axial Load Factor (Y1) - 2.45
Dynamic Axial Load Factor (Y2) - 3.64
Static Axial Load Factor (Y0) - 2.39
Fatigue Radial Load Limit (Cur) kN - 51
