Description
Brand - FAG
Item Number - 231S.915 FAG

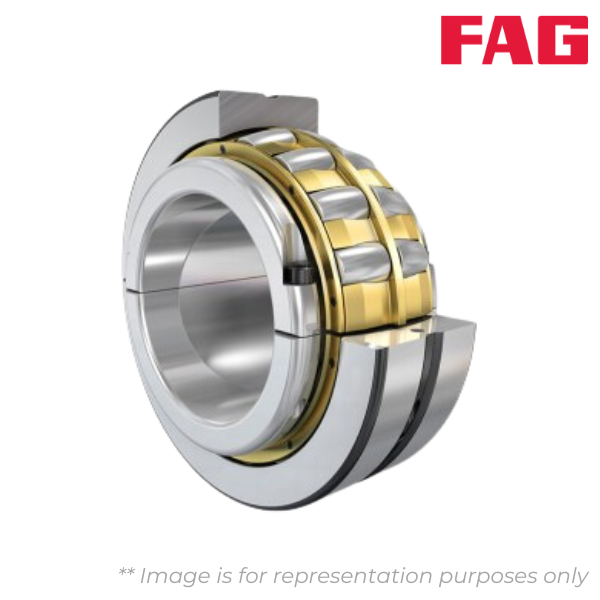

Category - Split Spherical Roller Bearing
Weight (m) kg - 116

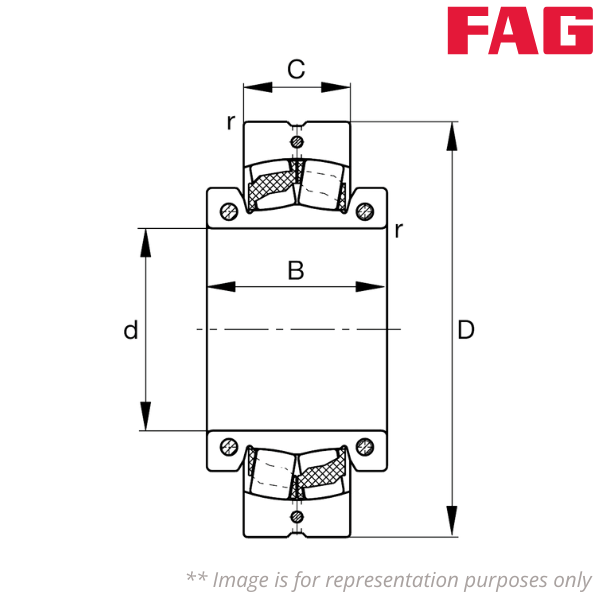

Inner Diameter (d) inch - 9.9375
Inner Diameter (d) mm - 260
Outer Diameter (D) mm - 460
Outer Ring Width (C) mm - 146
Inner Ring Width (B) mm - 190
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2280
Basic Radial Static Load Rating (C0r) kN - 3800
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.3
Dynamic Axial Load Factor (Y1) - 2.23
Dynamic Axial Load Factor (Y2) - 3.32
Static Axial Load Factor (Y0) - 2.18
Fatigue Radial Load Limit (Cur) kN - 255
Maximum Axial Load (Fa) - 32
Limiting speed (nG) min–1 - 400
Tightening Torque Clamping Screw (Ni) Nm - 120
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 23156K
Adapter Sleeve - SNP3156.915
Housing - H3156X.915
