Description
Brand - FAG
Item Number - 231S.907 FAG

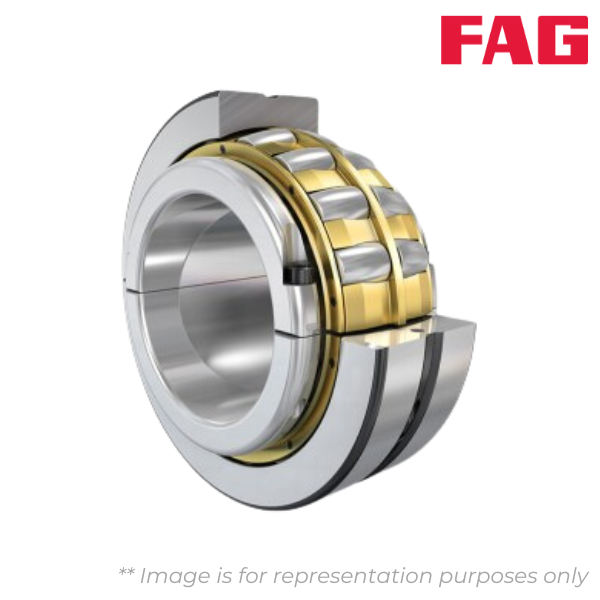

Category - Split Spherical Roller Bearing
Weight (m) kg - 113

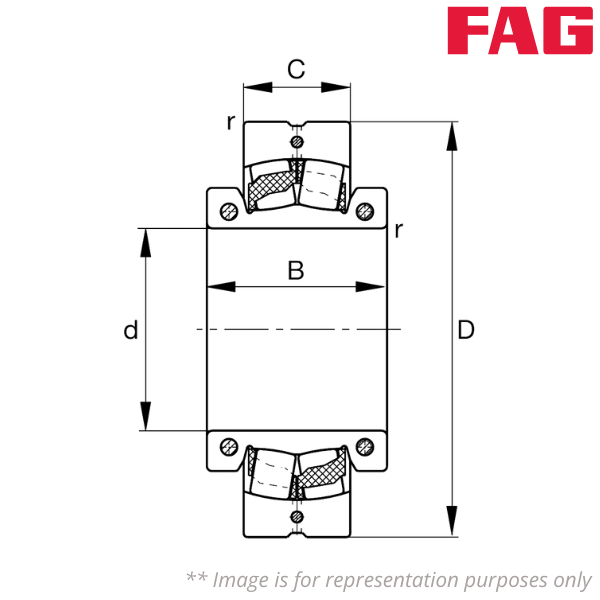

Inner Diameter (d) inch - 9.4375
Inner Diameter (d) mm - 239.713
Outer Diameter (D) mm - 440
Outer Ring Width (C) mm - 144
Inner Ring Width (B) mm - 210
Minimum Chamfer Dimension (r) mm - 4
Basic Radial Dynamic Load Rating (Cr) kN - 1860
Basic Radial Static Load Rating (C0r) kN - 3050
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.3
Dynamic Axial Load Factor (Y1) - 2.28
Dynamic Axial Load Factor (Y2) - 3.39
Static Axial Load Factor (Y0) - 2.23
Fatigue Radial Load Limit (Cur) kN - 218
Maximum Axial Load (Fa) - 32
Limiting speed (nG) min–1 - 450
Tightening Torque Clamping Screw (Ni) Nm - 120
Tightening Torque Clamping Screw (Ma) Nm - 69
Bearing Designation - 23152K
Adapter Sleeve - SNP3152.907
Housing - H3152X.907
