Description
Brand - FAG
Item Number - 231S.607-MA FAG

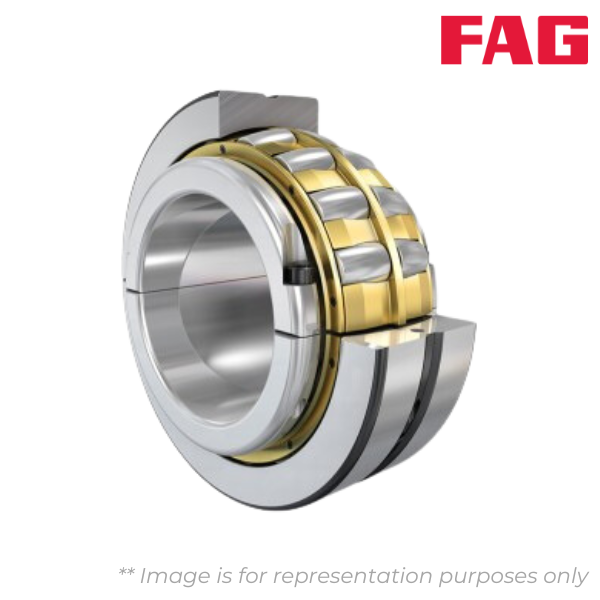

Category - Split Spherical Roller Bearing
Weight (m) kg - 34.4

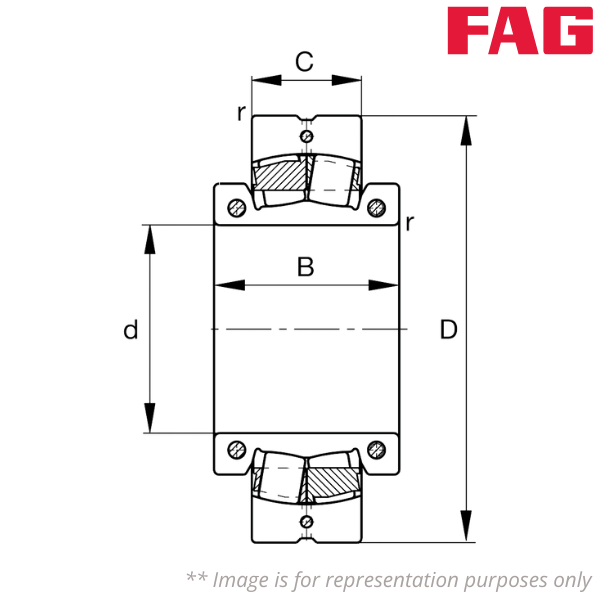

Inner Diameter (d) inch - 6.4375
Inner Diameter (d) mm - 163.513
Outer Diameter (D) mm - 300
Outer Ring Width (C) mm - 96
Inner Ring Width (B) mm - 140
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 830
Basic Radial Static Load Rating (C0r) kN - 1220
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y1) - 2.32
Dynamic Axial Load Factor (Y2) - 3.45
Static Axial Load Factor (Y0) - 2.26
Fatigue Radial Load Limit (Cur) kN - 100
Maximum Axial Load (Fa) - 22.2
Limiting speed (nG) min–1 - 670
Tightening Torque Clamping Screw (Ni) Nm - 69
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 23136K
Adapter Sleeve - SNP3136.607
Housing - H3136.607
