Description
Brand - FAG
Item Number - 231S.1600 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 547

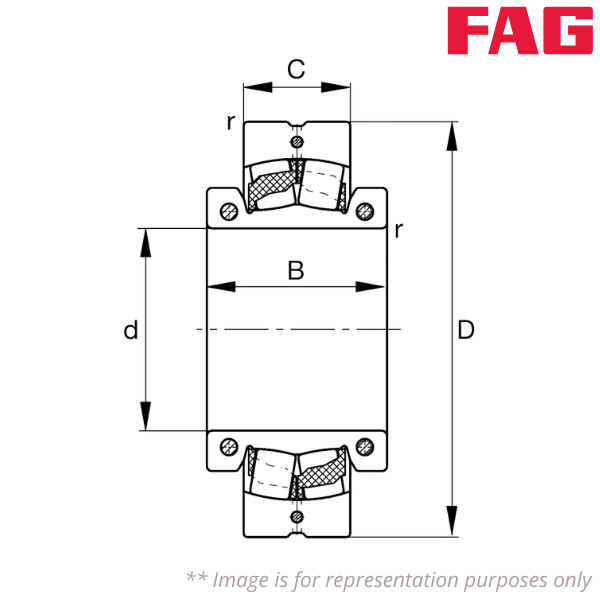

Inner Diameter (d) inch - 16
Inner Diameter (d) mm - 406.4
Outer Diameter (D) mm - 720
Outer Ring Width (C) mm - 226
Inner Ring Width (B) mm - 315
Minimum Chamfer Dimension (r) mm - 6
Basic Radial Dynamic Load Rating (Cr) kN - 5400
Basic Radial Static Load Rating (C0r) kN - 9650
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y1) - 2.3
Dynamic Axial Load Factor (Y2) - 3.42
Static Axial Load Factor (Y0) - 2.25
Fatigue Radial Load Limit (Cur) kN - 570
Maximum Axial Load (Fa) - 94
Limiting speed (nG) min–1 - 260
Tightening Torque Clamping Screw (Ni) Nm - 580
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23188K
Adapter Sleeve - SNP3188.1600
Housing - H3188HG.1600
