Description
Brand - FAG
Item Number - 231S.1500 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 296

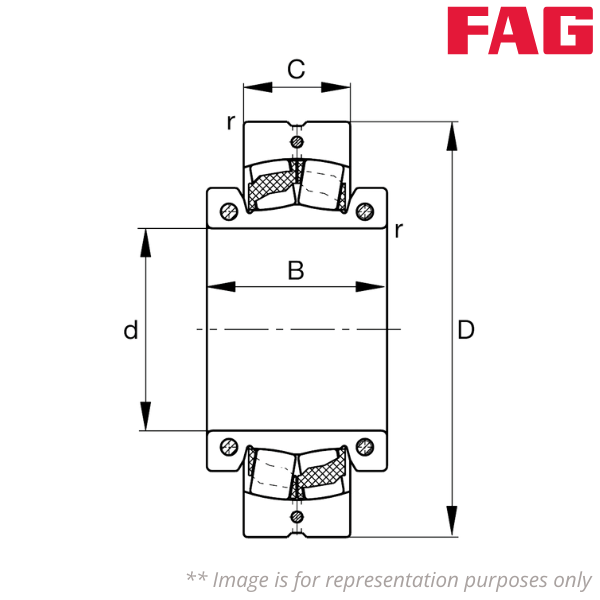

Inner Diameter (d) inch - 15
Inner Diameter (d) mm - 381
Outer Diameter (D) mm - 650
Outer Ring Width (C) mm - 200
Inner Ring Width (B) mm - 270
Minimum Chamfer Dimension (r) mm - 6
Basic Radial Dynamic Load Rating (Cr) kN - 4050
Basic Radial Static Load Rating (C0r) kN - 7200
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.28
Dynamic Axial Load Factor (Y1) - 2.39
Dynamic Axial Load Factor (Y2) - 3.56
Static Axial Load Factor (Y0) - 2.34
Fatigue Radial Load Limit (Cur) kN - 440
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 300
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23180K
Adapter Sleeve - SNP3180.1500
Housing - H3180HG.1500
