Description
Brand - FAG
Item Number - 231S.1300 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 288

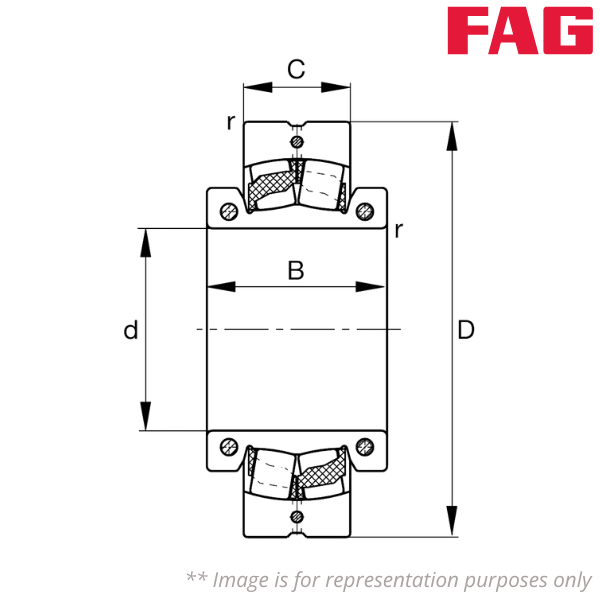

Inner Diameter (d) inch - 13
Inner Diameter (d) mm - 330.2
Outer Diameter (D) mm - 600
Outer Ring Width (C) mm - 192
Inner Ring Width (B) mm - 270
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 3900
Basic Radial Static Load Rating (C0r) kN - 6800
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.3
Dynamic Axial Load Factor (Y1) - 2.25
Dynamic Axial Load Factor (Y2) - 3.34
Static Axial Load Factor (Y0) - 2.2
Fatigue Radial Load Limit (Cur) kN - 410
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 300
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 23172K
Adapter Sleeve - SNP3172.1300
Housing - H3172HG.1300
