Description
Brand - FAG
Item Number - 231S.1200 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 184

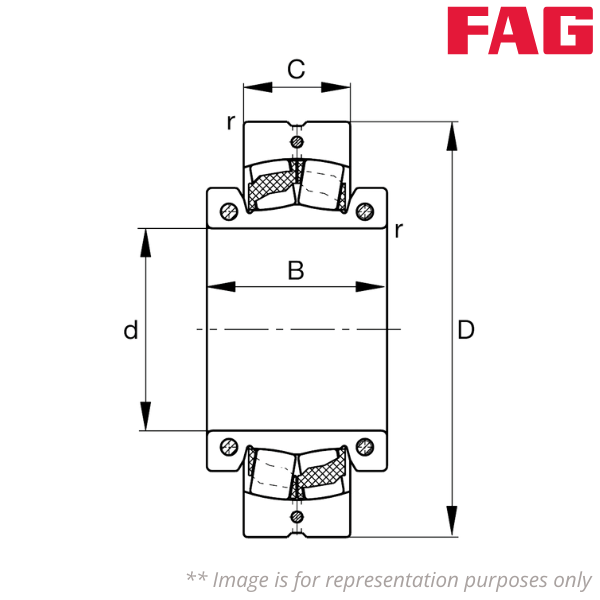

Inner Diameter (d) inch - 12
Inner Diameter (d) mm - 304.8
Outer Diameter (D) mm - 540
Outer Ring Width (C) mm - 176
Inner Ring Width (B) mm - 225
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2750
Basic Radial Static Load Rating (C0r) kN - 4750
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y1) - 2.3
Dynamic Axial Load Factor (Y2) - 3.42
Static Axial Load Factor (Y0) - 2.25
Fatigue Radial Load Limit (Cur) kN - 305
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 360
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23164K
Adapter Sleeve - SNP3164.1200
Housing - H3164HG.1200
