Description
Brand - FAG
Item Number - 231S.1100 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 160

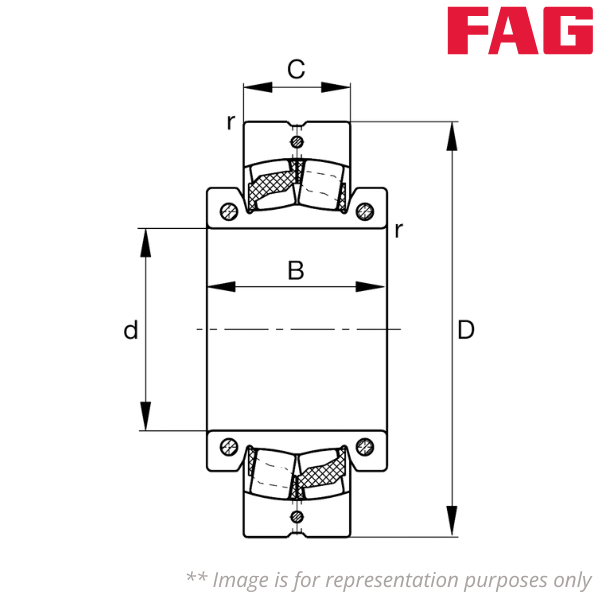

Inner Diameter (d) inch - 11
Inner Diameter (d) mm - 279.4
Outer Diameter (D) mm - 500
Outer Ring Width (C) mm - 160
Inner Ring Width (B) mm - 218
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2320
Basic Radial Static Load Rating (C0r) kN - 3900
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y1) - 2.32
Dynamic Axial Load Factor (Y2) - 3.45
Static Axial Load Factor (Y0) - 2.26
Fatigue Radial Load Limit (Cur) kN - 265
Maximum Axial Load (Fa) - 44
Limiting speed (nG) min–1 - 400
Tightening Torque Clamping Screw (Ni) Nm - 190
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23160K
Adapter Sleeve - SNP3160.1100
Housing - H3160HG.1100
