Description
Brand - SKF

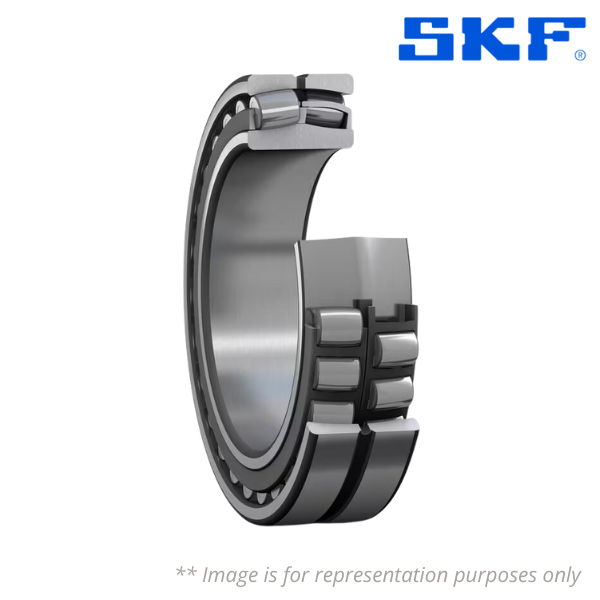

Item Number - 23184CAK/C083W507 SKF
Also known as - 23184K.MB.C3.T52BW
Category - Spherical Roller Bearing
Inner (d) MM - 420
Outer (D) MM - 700
Width (B) MM - 224
Inner (d) Inch - 16.5354
Outer (D) Inch - 27.5591
Width (B) Inch - 8.8189
Weight (kg) - 350
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W57 - W4 + W31 + W33 Combined
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
