Description
Brand - FAG
Item Number - 23180-BEA-XL-2RSR-MB1 FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 255
Inner Diameter (d) mm - 400
Outer Diameter (D) mm - 650
Width (B) mm - 200
Minimum Chamfer Dimension (r) mm - 6
Outer Ring Bore Diameter (D1) mm - 573.3
Lubrication Hole Diameter (ds) mm - 12.5
Lubrication Groove Width (ns) mm - 23.5

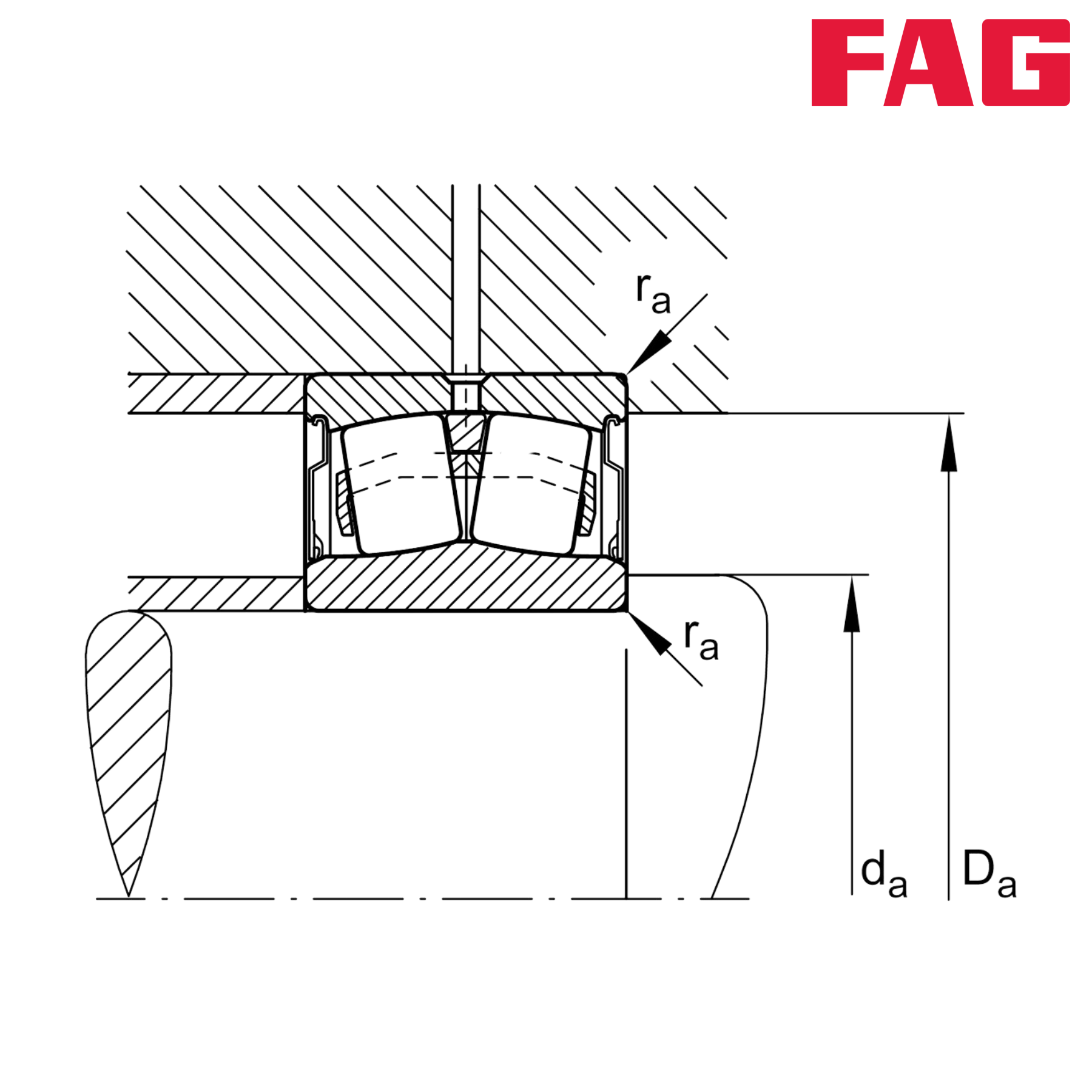

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 426
Maximum Housing Connection Diameter (Da) mm - 624
Maximum Undercut Radius (ra) mm - 5
Basic dynamic Radial Load Rating (Cr) N - 5100000
Basic Static Radial Load Rating (C0r) N - 8100000
Calculation Factor (e) - 0.28
Calculation Factor (Y1) - 2.41
Calculation Factor (Y2) - 3.59
Calculation Factor (Y0) - 2.35
Radial Fatigue Load Limit (Cur) N - 590000
Limiting Speed (nG) 1/min - 236
Suffixes:
BEA - Floating Rib Washer on Inner Ring, Two Rigid External Ribs
XL - X-Life
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease
MB1 - Single-Piece Solid Brass Cage, Guided on Inner Ring
