Description
Brand - FAG
Item Number - 23176-BEA-XL-K-2RSR-MB1 FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 227
Inner Diameter (d) mm - 380
Outer Diameter (D) mm - 620
Width (B) mm - 194
Minimum Chamfer Dimension (r) mm - 5
Outer Ring Bore Diameter (D1) mm - 544.9
Lubrication Hole Diameter (ds) mm - 12.5
Lubrication Groove Width (ns) mm - 23.5

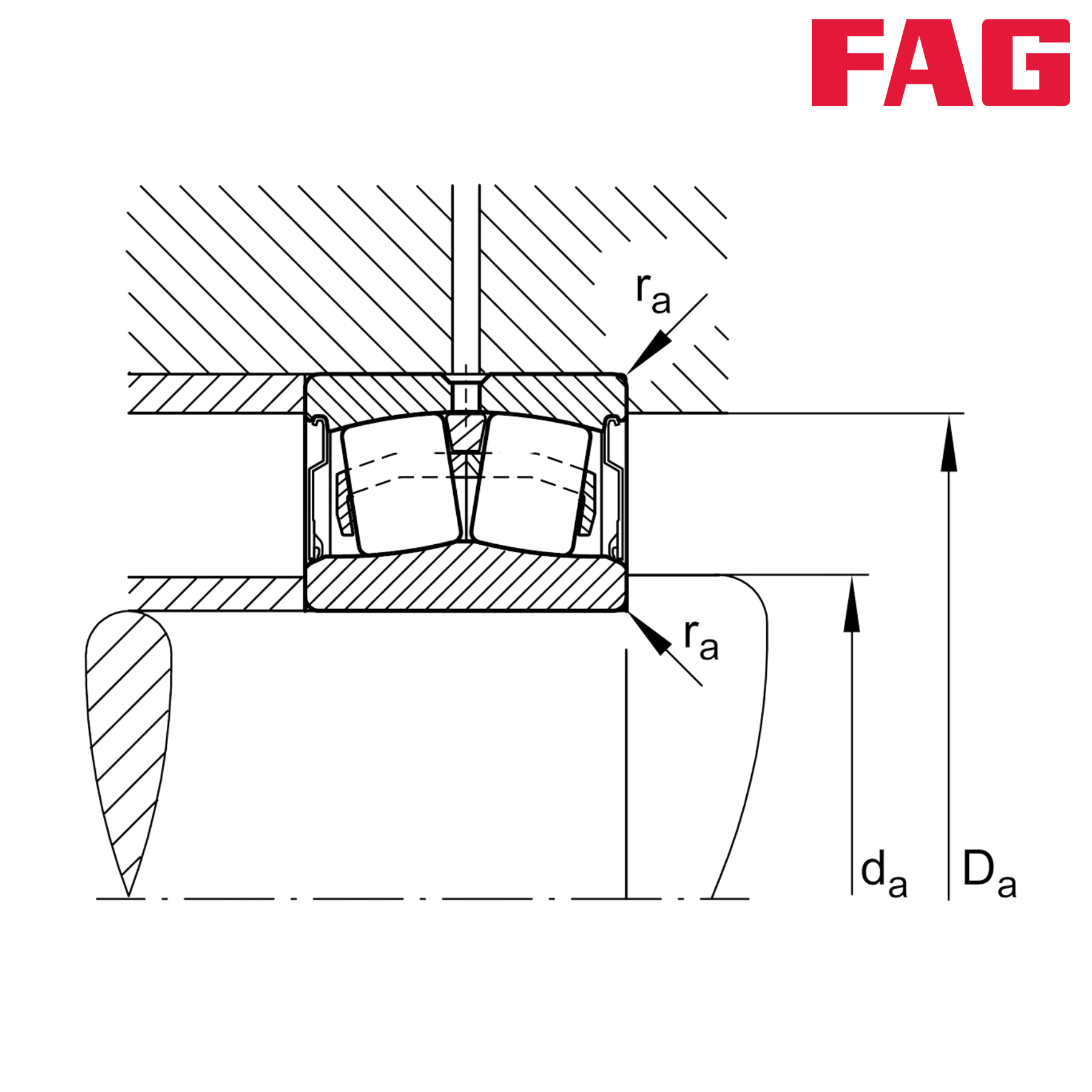

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 400
Maximum Housing Connection Diameter (Da) mm - 600
Maximum Undercut Radius (ra) mm - 4
Basic dynamic Radial Load Rating (Cr) N - 4750000
Basic Static Radial Load Rating (C0r) N - 7600000
Calculation Factor (e) - 0.28
Calculation Factor (Y1) - 2.37
Calculation Factor (Y2) - 3.53
Calculation Factor (Y0) - 2.32
Radial Fatigue Load Limit (Cur) N - 540000
Limiting Speed (nG) 1/min - 248
Adapter Sleeve - H3176-HG
Withdrawal Sleeve - AH3176G-H
Suffixes:
BEA - Floating Rib Washer on Inner Ring, Two Rigid External Ribs
XL - X-Life
K - Tapered Bore (Taper 1:12)
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease
MB1 - Single-Piece Solid Brass Cage, Guided on Inner Ring
